Dell Vostro V130 schematic, RYU2 13 UMA

The motherboard schematic diagram for Dell Vostro V130 laptop/notebook, Wistron RYU2 13 UMA Mainboard, RYU2-13 CALPELLA UMA Schematics.
CPU: Intel ULV Arrandale SFF
Chipset: Intel PCH HM57
OEM: Wistron Corporation
Project code : 91.4M101.001
Part Number : 48.4M101.0SB
PCB P/N : 10251
Revision: SB
Document Number: RYU2 13 UMA
Rev: A00
Format: PDF
Total Pages: 92
File size: 2.46MB
Sale Price: 10.5$

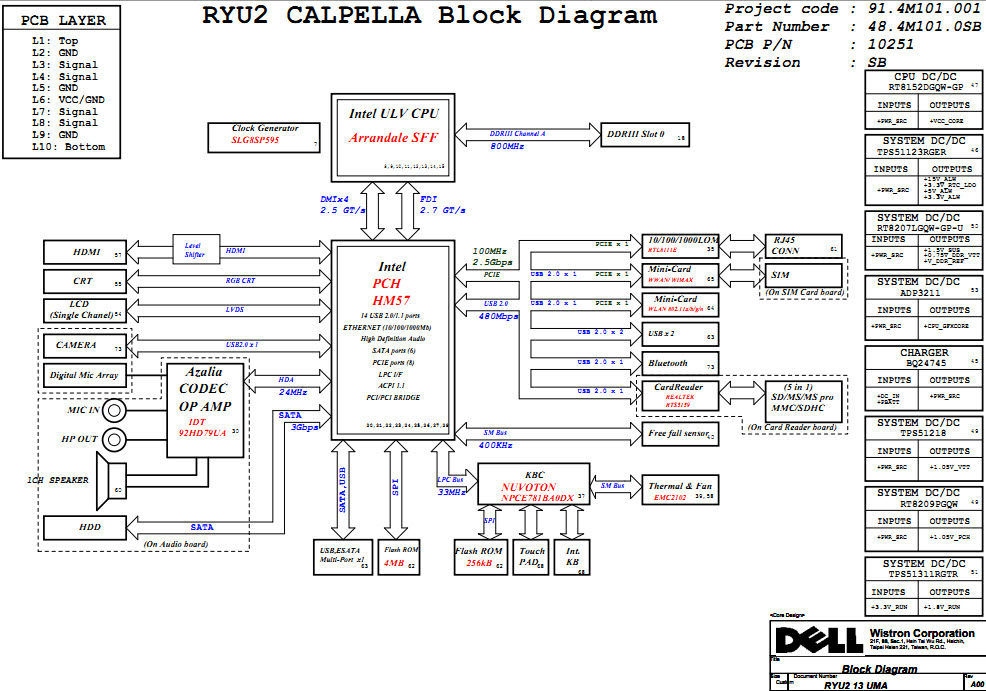

Dell Vostro V130 Block Diagram:

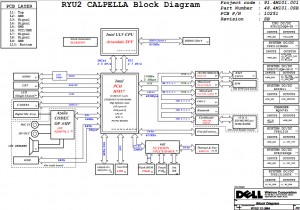

Dell Vostro V130 Block Diagram

Dell Vostro V130 Block Diagram
