Fujitsu Siemens Amilo K7610W schematic, 8889CF

The motherboard schematic for Fujitsu Siemens Amilo K7610W laptop/notebook, MITAC 8889CF.
CPU: AMD Mobile Sempron&Turion 64
North Bridge: VIA K8N800A
South Bridge: VT 8235 CE
OEM: MITAC
Document Number: PCB/ASSY 316806300001/411806300001
Rev: R01
Format: PDF
Total Pages: 30
File size: 913KB
Sale Price: 8.5$

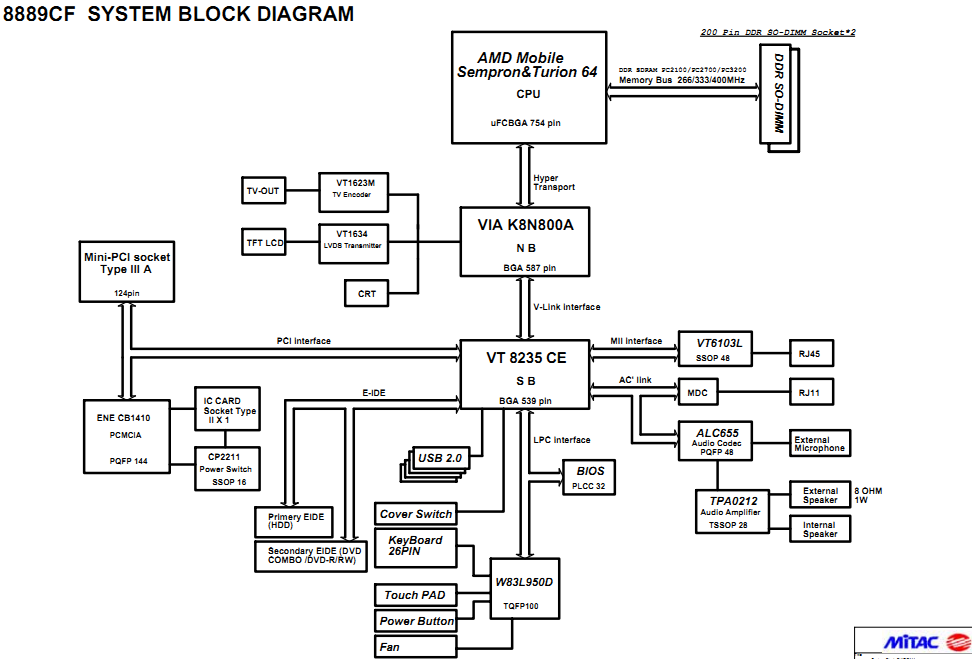

Fujitsu Siemens Amilo K7610W Block Diagram:
