HP Compaq nc6400 schematic diagram(DIS LA-2951)

The motherboard schematic diagram(pdf) for HP Compaq nc6400(DIS) laptop/notebook, Compal LA-2951 Schematics Document. Mobile Yonah uFCPGA with Intel, Calistoga_P/GM+ATI M52-T + ICH7-M core logic.
CUP: Mobile Yonah/Merom
North Bridge: Intel Calistoga MCH 945PM
South Bridge: Intel ICH7-M
ATI M52-T
OEM: Compal Electronics
Document Number: LA-2951P
Format: PDF
Total Pages: 54
File size: 1.36MB
Language: English
Sale Price: 16.5$


HP Compaq nc6400 Block Diagram(DIS):

HP Compaq nc6400 Block Diagram

HP Compaq nc6400 Block Diagram

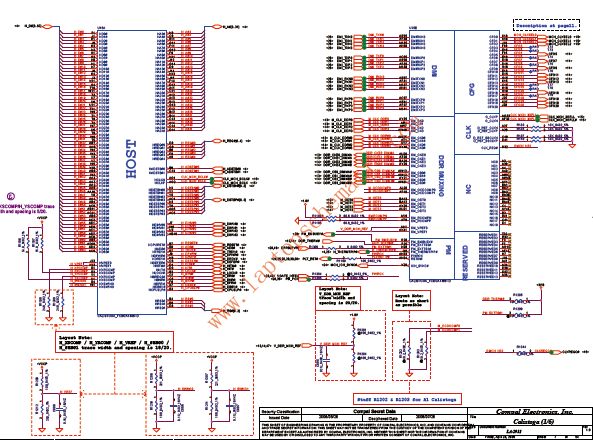

HP Compaq nc6400 laptop schematics:

HP Compaq nc6400 schematics

HP Compaq nc6400 schematics
