Compaq Presario CQ40 schematics(LA-4101P)Intel UMA

The motherboard schematic diagram for HP Compaq Presario CQ40 laptop/notebook(Intel UMA). Montevina Blade UMA LA4101P Schematics Document, Mobile Penryn uFCPGA with Intel Cantiga_GM+ICH9-M core logic.
CUP: Mobile Penryn
North Bridge: Intel Cantiga MCH
South Bridge: Intel ICH9-M
OEM: Compal Electronics, Inc.
Document Number: Montevina Blade UMA LA4101P
Format: PDF
Total Pages: 46
File size: 1.12MB
Language: English
Sale Price: 16.5$

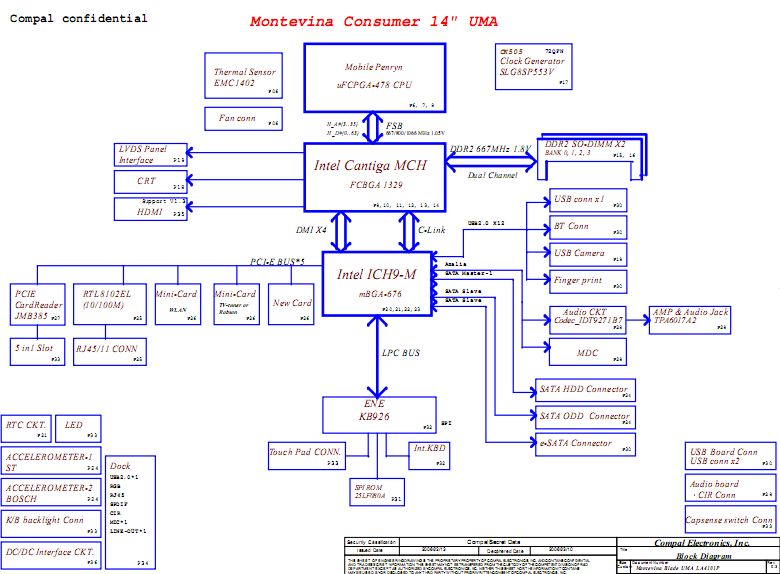

HP Compaq CQ40 Block Diagram(LA-4101P):

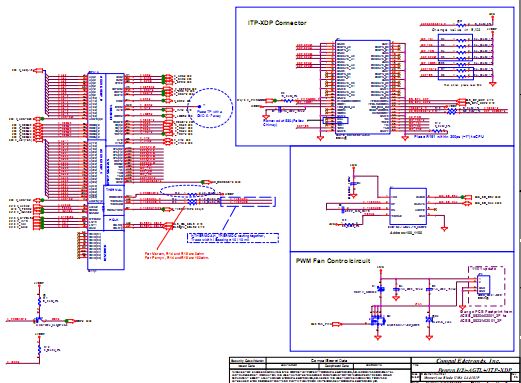

HP Compaq CQ40 Schematics(Intel UMA):
