HP Elitebook 6930p schematic, KARIA DISCRETE

The motherboard schematic for HP Elitebook 6930p (UMA) laptop/notebook, Wistron KARIA DISCRETE.
CPU: Intel Penryn
FSB:667/800/1067 MHz
North Bridge: Cantiga PM
South Dridge: ICH9-M
Graphics: ATI M82-SCE
OEM: Wistron Corporation
Project code: 91.4V901.001
REVISION: MV
Document Number: KARIA DISCRETE
Format: PDF
Total Pages: 58
Sale Price: 12.5$

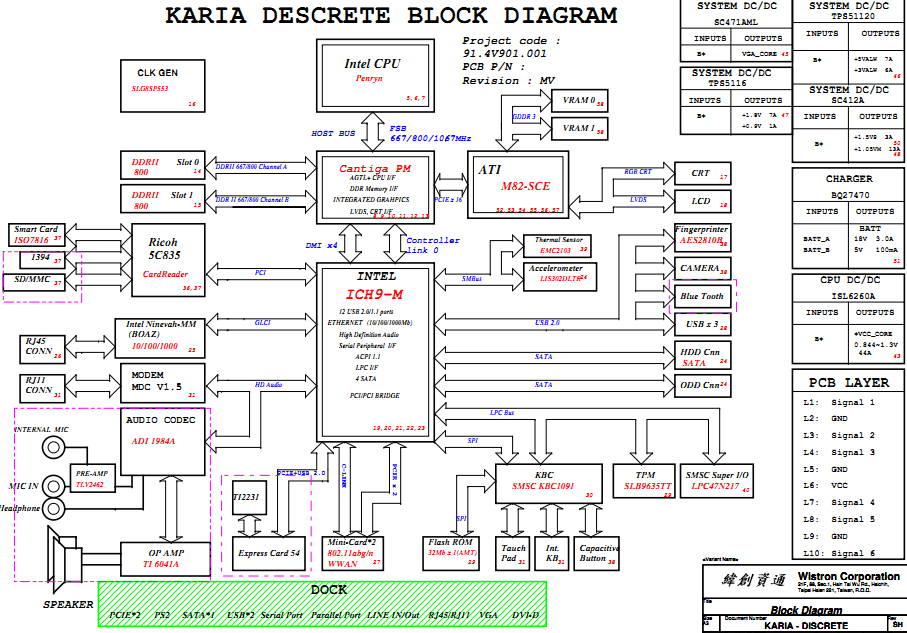

HP Elitebook 6930p Block Diagram:

HP Elitebook 6930p Block Diagram

HP Elitebook 6930p Block Diagram

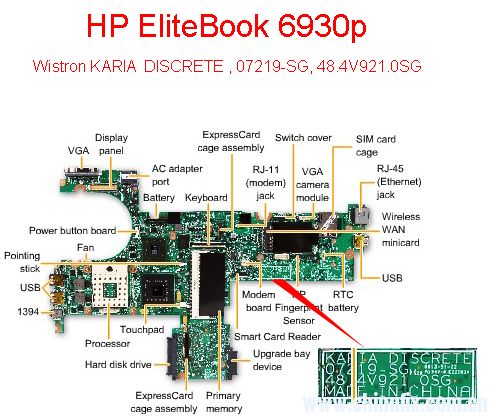

HP Elitebook 6930p Mainboard:

HP Elitebook 6930p Mainboard

HP Elitebook 6930p Mainboard
