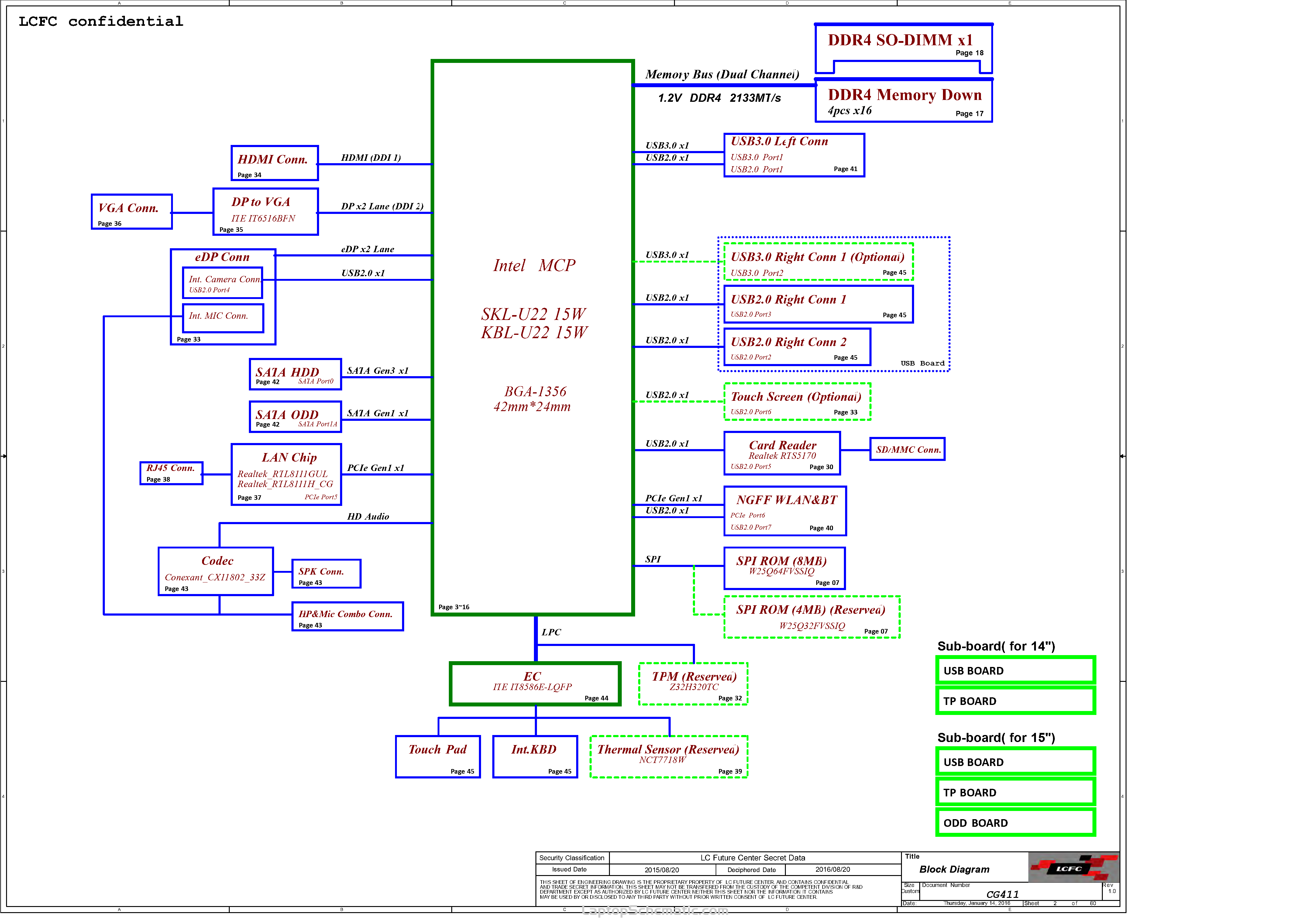

Lenovo IdeaPad 310-15ISK 510-15ISK (UMA GPU) Schematic & Boardview NM-A752 CG411 CG511

Schematic (*.pdf), Boardview (*.tvw) for Lenovo IdeaPad 310-15ISK (UMA GPU), Lenovo IdeaPad 510-15ISK (UMA GPU) laptop, NM-A752 Motherboard.
Intel MCP Skylake / Kabylake
GPU: (UMA)
EC: ITE IT8586E
Format：PDF (Searchable) / Boardview (*.tvw)
Sale Price: 13.5$

Original document, no irrelevant watermark.

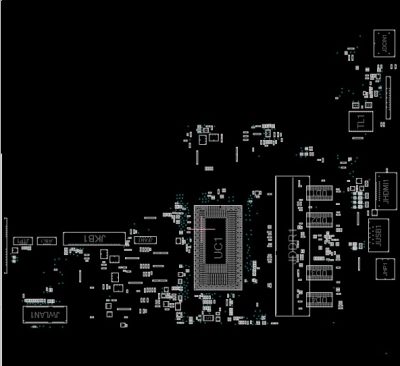

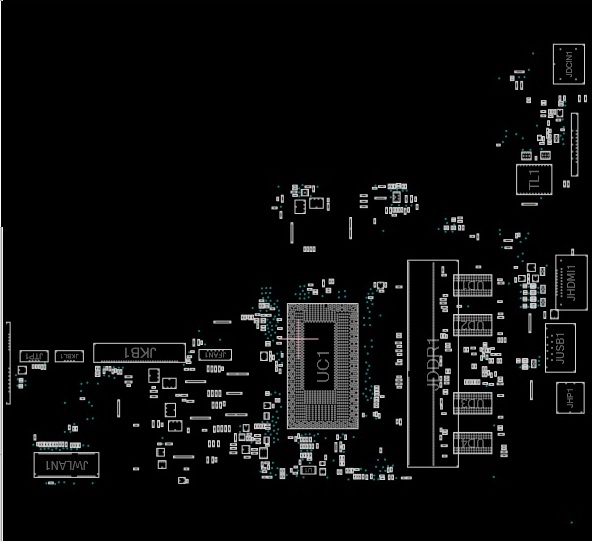

Boardview Software

• Open Boardview(.tvw) file with BoardViewer (Download)
