Lenovo IdeaPad 710S Plus-13ISK Schematic CIZ00 LA-E011P

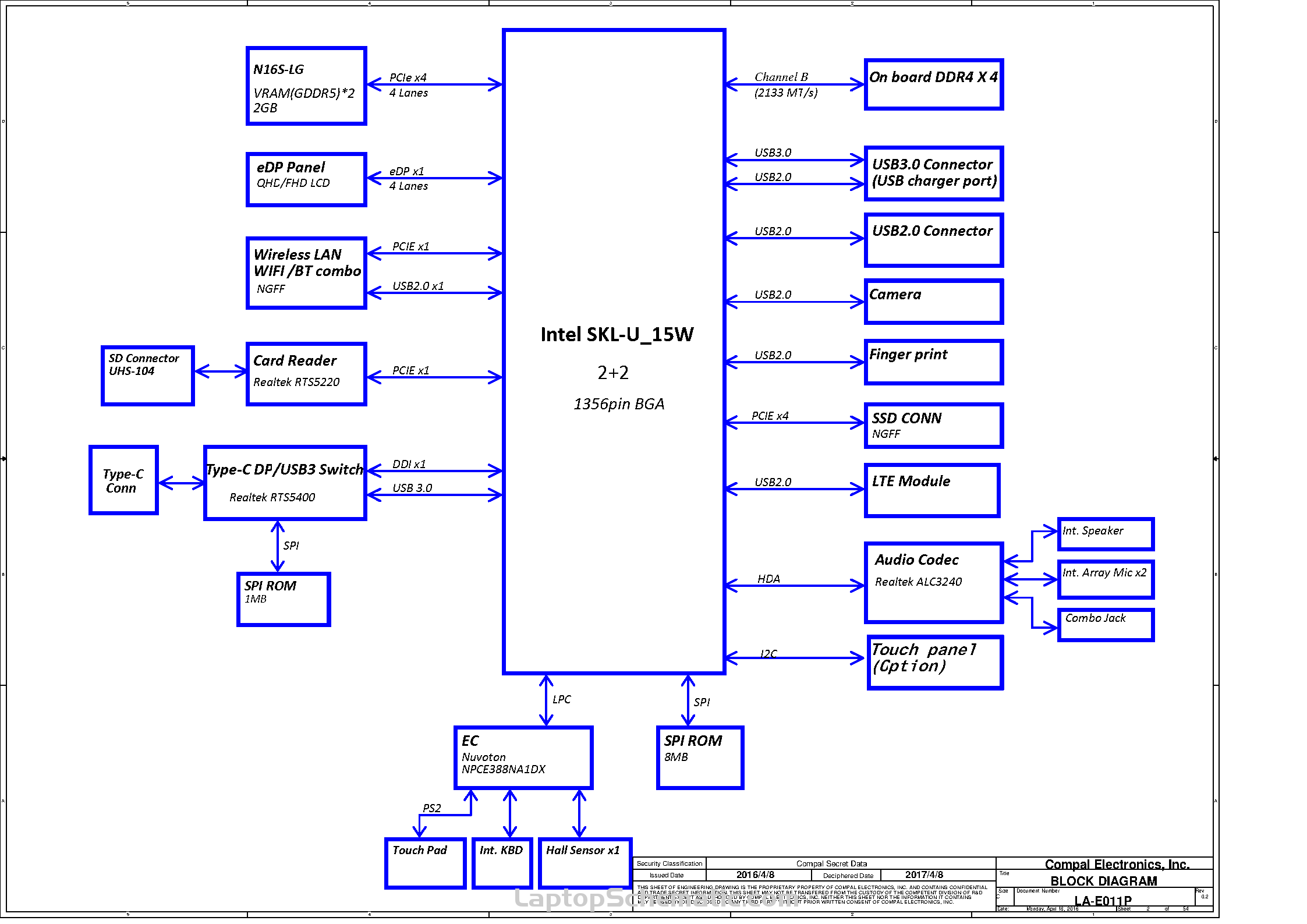

Schematic for Lenovo IdeaPad 710S Plus-13ISK Laptop, Compal CIZ00 LA-E011P Motherboard.
CPU/RAM: Intel SKYLAKE-U/KABYLAKE-U + DDR4
GPU: UMA or DIS (N16S-LG + GDDR5)
EC: Nuvoton NPCE388NA1DX
OEM: Compal CIZ00 LA-E011P
Rev: 0.2
Format: PDF (No watermark of website)
Total Sheet: 49
Language: English
Sale Price: 9.5$
