Lenovo IdeaPad Y470 schematic, PIQY0 LA-6881P

The motherbord schematic for Lenovo IdeaPad Y470 notebook/laptop, PIQY0 Mainboard Compal LA-6881P, PIQY0 M/B Schematics Document.
CPU: Intel SandyBridge + nVIDIA N12P-GT + DDR3
Chipset: Intel Cougar Point
OEM: Compal Electronics, Inc.
File Name : PIQY0
Rev: 1.0
Format: PDF
Total Pages: 63
File size: 1.78MB
Sale Price: 11.5$

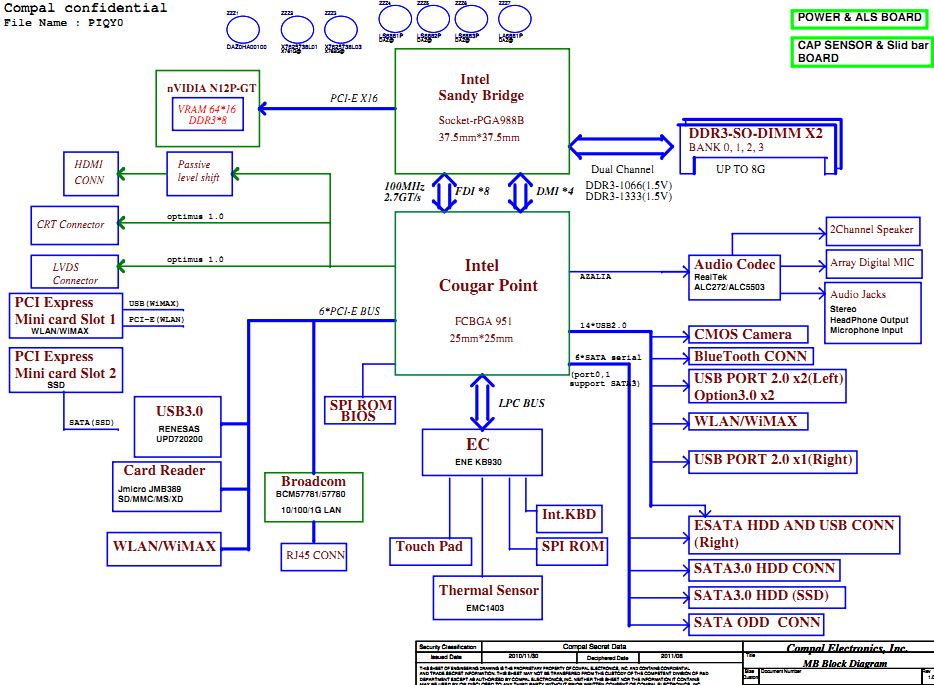

Lenovo IdeaPad Y470 (LA-6881P) Block Diagram:
