Lenovo IdeaPad Z470 Z475 (Intel) schematic & Boardview, Quanta KL6 / KL6A

The motherboard schematic and BoardView(.bdv) for Lenovo KL6A laptop/notebook, Quanta KL6 / KL6A, DAOKL6MB8G0 Motherboard.
CPU: SandyBridge 0.61
Discrete VGA Nvidia N12P-GE/N12P-GV1/N12P-GV
Chipset: PCH CougarPoint 0.7
OEM: Quanta Computer Inc.
PROJECT: KL6A
REV: 1A
Format: PDF
Total Pages: 47
Total size:3.45MB
Sale Price: 14.5$ (include BoardView)

Lenovo IdeaPad Z470 Z475 Block Diagram:

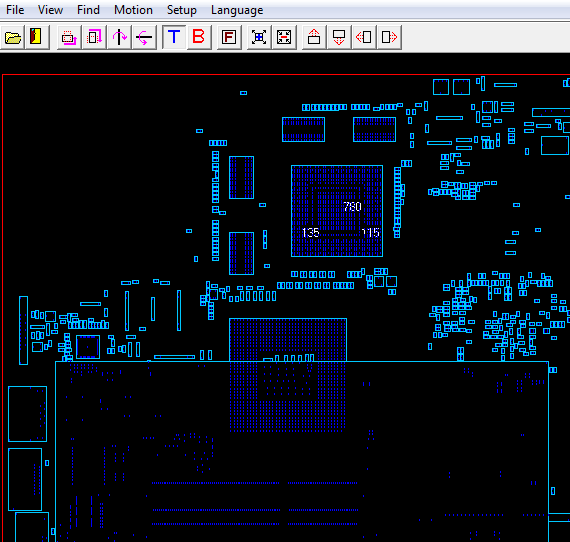

Lenovo IdeaPad Z470 Z475 Boardview:
