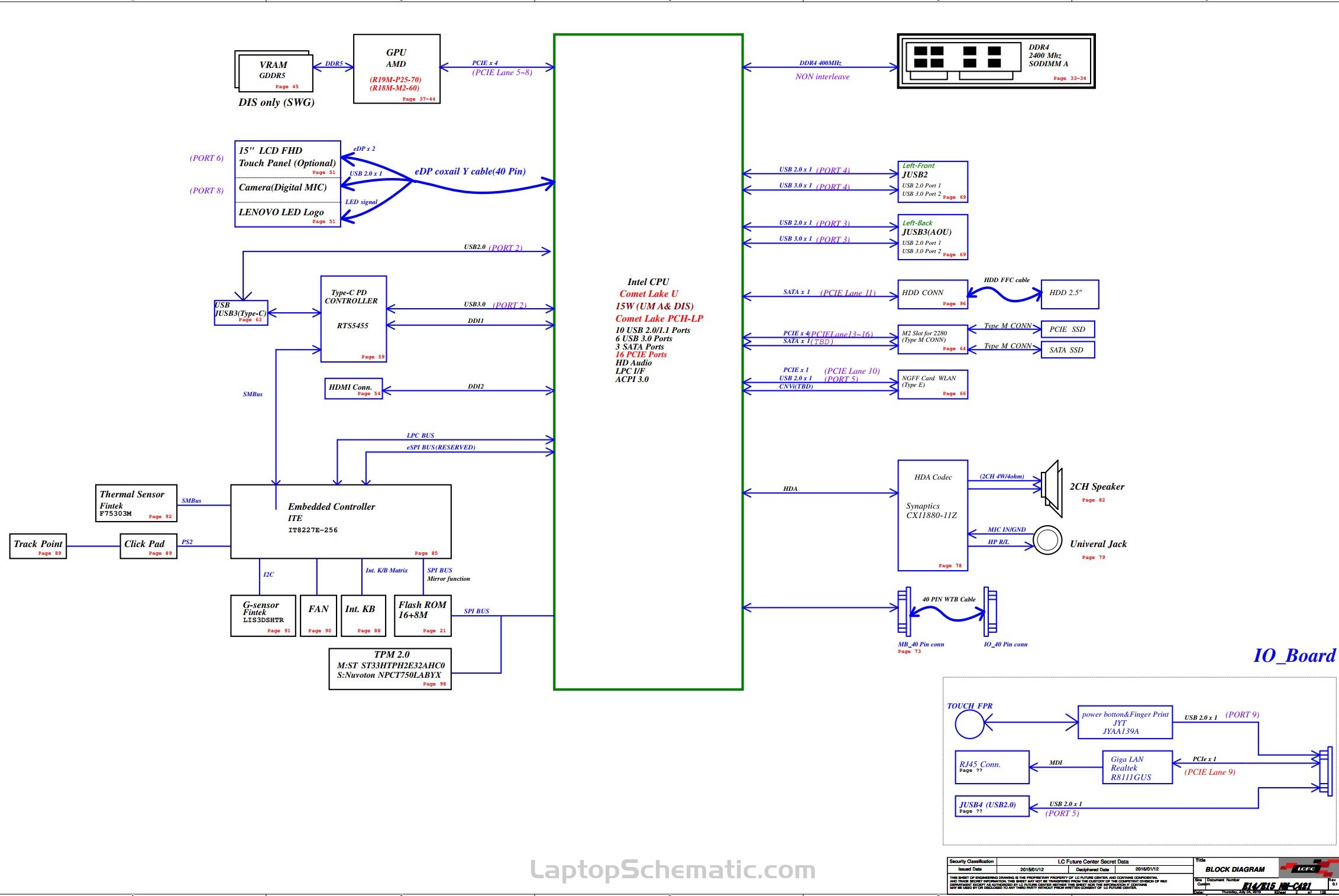

Lenovo ThinkPad E14 E15 Schematic LCFC FE4A0/FE5A0 NM-C421

Schematic (*.pdf) for Lenovo ThinkPad E14, Lenovo ThinkPad E15 laptop, LCFC FE4A0/FE5A0 NM-C421 Motherboard.
CPU/HUB/RAM: Intel CometLake-U / DDDR4
GPU/VRAM: UMA or DIS (AMD R19M-P25-70 or R18M-M2-60 + GDDR5)
EC: IT8227E-256
LAN: R8111GUS
Audio: CX11880-11Z
SPI Flash: W25Q128JVSIQ, W25Q64JVSSIQ
USB: RTS5455
TPM: ST33HTPH2E32AHC0, NPCT750LABYX
Fingerprint: JYAA139A
Format: PDF
Searchable PDF file, No watermark of website
Sale Price: 12.5$
