Lenovo V130-15IKB Iron Grey Schematic & Boardview Wistron LV315KB 17807-3M

Schematic (*.pdf), Boardview (*.cad & *.pdf) for Lenovo V130-15IKB Iron Grey laptop, Wistron LV315KB 17807-3M Motherboard.
CPU/RAM: Intel KabyLake / DDR4
GPU: UMA or DIS (AMD R17M-P1/G1 GDDR5)
EC: Nuvoton NPCE285PA0DX
Format:PDF (Searchable) / Boardview (*.cad & *.pdf)
Sale Price: 19.5$

Boardview Software

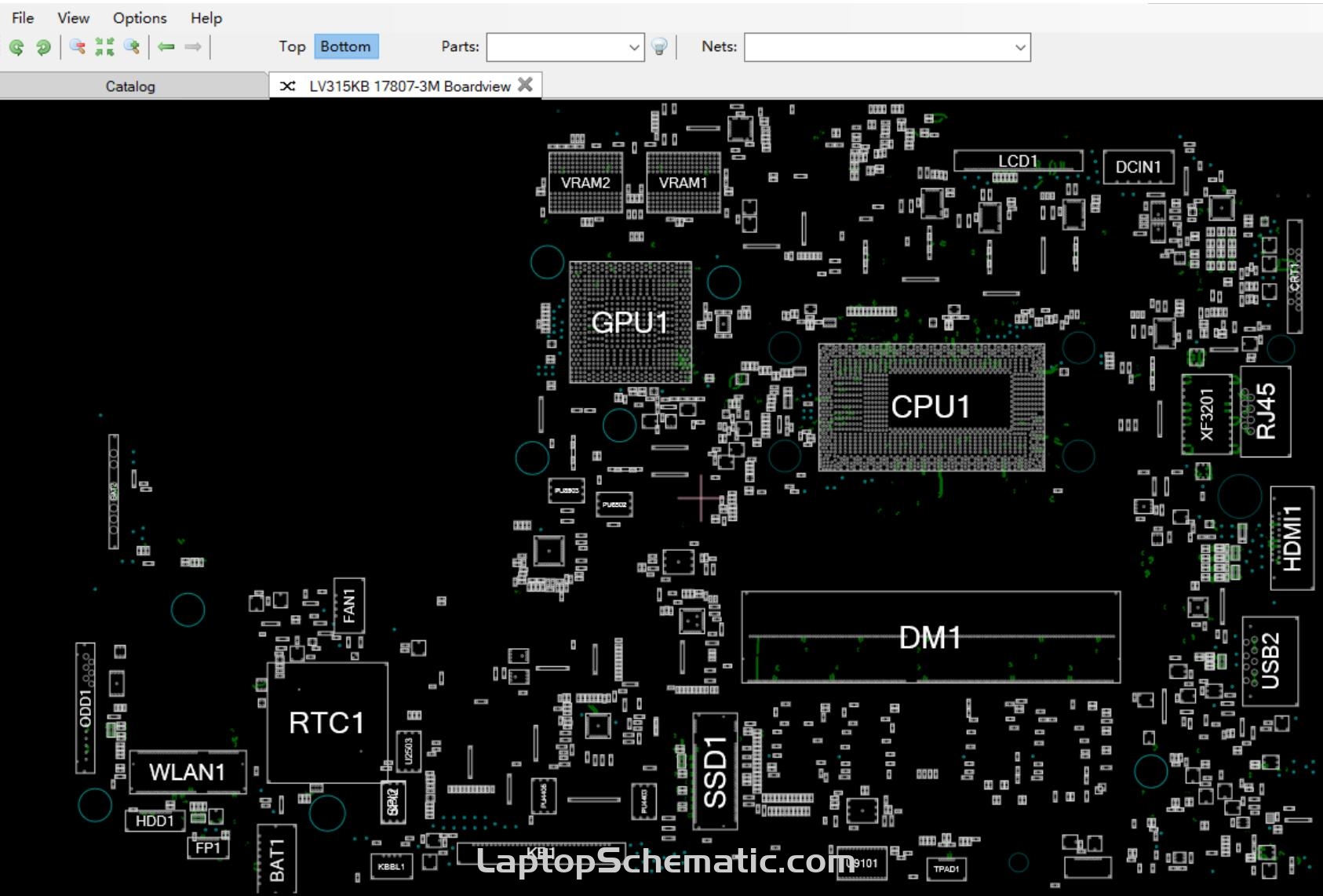

  • Open Boardview(.cad) file with BoardViewer (Download)

File list:
Lenovo V130-15IKB – Wistron LV315KB 17807-3M Schematic.pdf
Lenovo V130-15IKB – Wistron LV315KB 17807-3M Boardview.pdf
LV315KB 17807-3M Boardview.cad

Lenovo V130-15IKB Iron Grey Schematic & Boardview Wistron LV315KB 17807-3M
