Sony MBX-214 M870 schematic

The motherboard schematics for Sony M870-1-01 MainBoard.
Project Code & Schematics Subject: M870 Main Board
PCB P/N:
(IRIS) :1P-0097J00-8010
(HANNSTAR) :1P-0097500-8010
A/B P/N:
(IRIS) :1P-1097J02-8010
(HANNSTAR) :1P-1097500-8010
FU/B P/N:
(IRIS) :1P-1097J00-8010
(HANNSTAR) :1P-1097503-8010
Ch/B P/N:
(IRIS) :1P-1097J01-8010
(HANNSTAR) :1P-1097501-8010
FP/B P/N:
(IRIS) :1P-1097J03-8010
(HANNSTAR) :1P-1097502-8010
CPU: Penryn / Merom/PDC
North Bridge: Cantiga PM45/GM45 + Nvidia N10M-GS N10P-LP GDDR3
South Bridge: ICH9-M
OEM: FOXCONN
Document Number: M870-1-01
Format: PDF
Rev: 1.0
Total Pages: 75
File size: 3.34MB
Sale Price: 10.5$

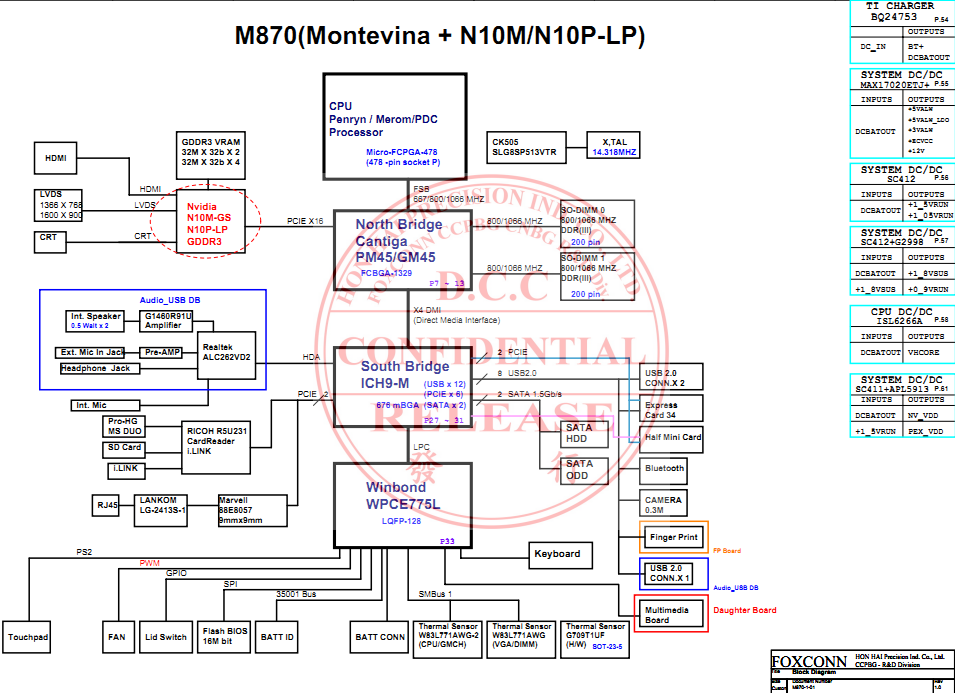

Sony MBX-214 M870 Block Diagram:
Sony MBX-214 M870 Block Diagram

Sony MBX-214 M870 Block Diagram
