Toshiba Satellite A665/A665D/P750/P755 series schematic, PHQAA LA-6832P

The motherboard schematic for Toshiba Satellite A665, Toshiba Satellite A665D, Toshiba Satellite P750, Toshiba Satellite P755 laptop/notebook, PHQAA Mainboard Compal LA-6832P, PHQAA Marseille 10R/10RG LA-6832P REV 0.2 Schematic. Intel Processor(Sandy Bridge) / PCH(Cougar Point).
CPU: Intel Sandy Bridge
Chipset:Intel PCH Cougar Point – M
OEM: Compal Electronics, Inc.
Document Number: PHQAA LA-6832P M/B
Rev: 0.2
Format: PDF
Total Pages: 45
File size: 1.46MB
Sale Price: 11.5$

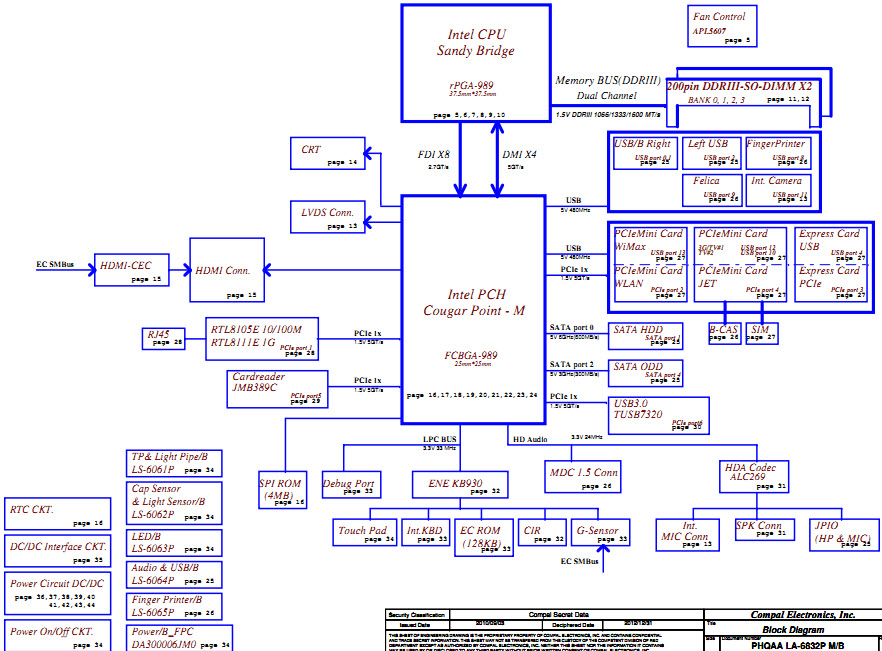

Toshiba Satellite A665/A665D/P750/P755 Block Diagram:
