Toshiba Satellite L655/L755D AMD schematic, 31MLPMB00L0, Quanta BLF

The motherboard schematic for Toshiba Satellite L655, Toshiba Satellite L755D/L755D-A2M laptop/notebook, Quanta BLF_BLFD Mainboard.
CPU: AMD FS1-LIano Support 45W/35W + ATI GPU Seymour XT S3
Chipset: AMD FCH Hudson-M2/M3
OEM: Quanta Computer Inc.
PROJECT: BLF_BLFD
Rev: 1C
Format: PDF
Total Pages: 50
File size: 1.51MB
Sale Price: 11.5$

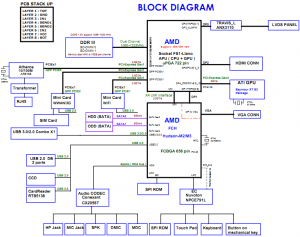

Toshiba Satellite L655/L755D Block Diagram:
