Toshiba Satellite L735D schematic,Bremen 10ABK,BM10ABK-6050A2471301

The motherboard schematic diagram for Toshiba Satellite L735D laptop/notebook, INVENTEC Bremen 10ABK Mainboard, BM10ABK-6050A2471301.
CPU: AMD APU Ontario
Chipset: AMD FCH Hudson M1
OEM: INVENTEC
TITLE: Bremen 20
DOC.NUMBER: 6050A2436601
REV: AX1
Format: PDF
Total Pages: 40
File size: 456KB
Sale Price: 11.5$

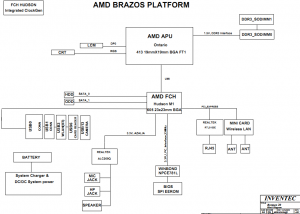

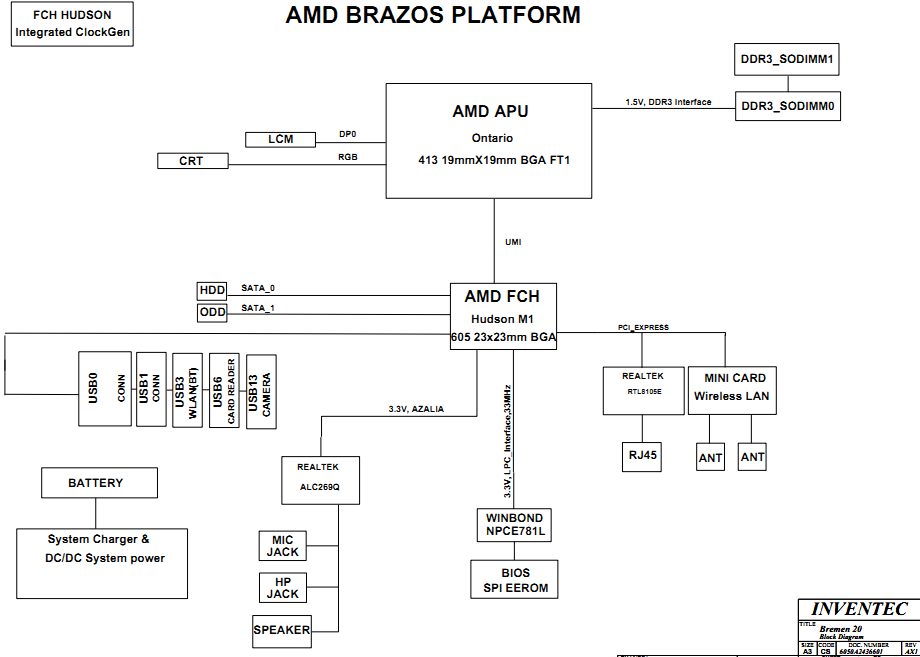

Toshiba Satellite L735D Block Diagram:
