Toshiba Satellite M600/M645 schematic, NBQAA LA-6072P

The motherboard schematic for Toshiba Satellite M600, Toshiba Satellite M645 laptop/notebook, NBQAA LA-6072P Mainboard.
CPU: Intel Arrandale
Discrete VGA (DDR3) N11M-OP1,64bit with 512MB/1GB /N11P-LP1,128bit with 1GB
Chipset: Intel 5 Series Chipset HM57,HM55
OEM: Compal Electronics, Inc.
Document Number: NBQAA LA6072P M/B
Rev: 1.0
Format: PDF
Total Pages: 61
File size: 1.66MB
Sale Price: 10.5$

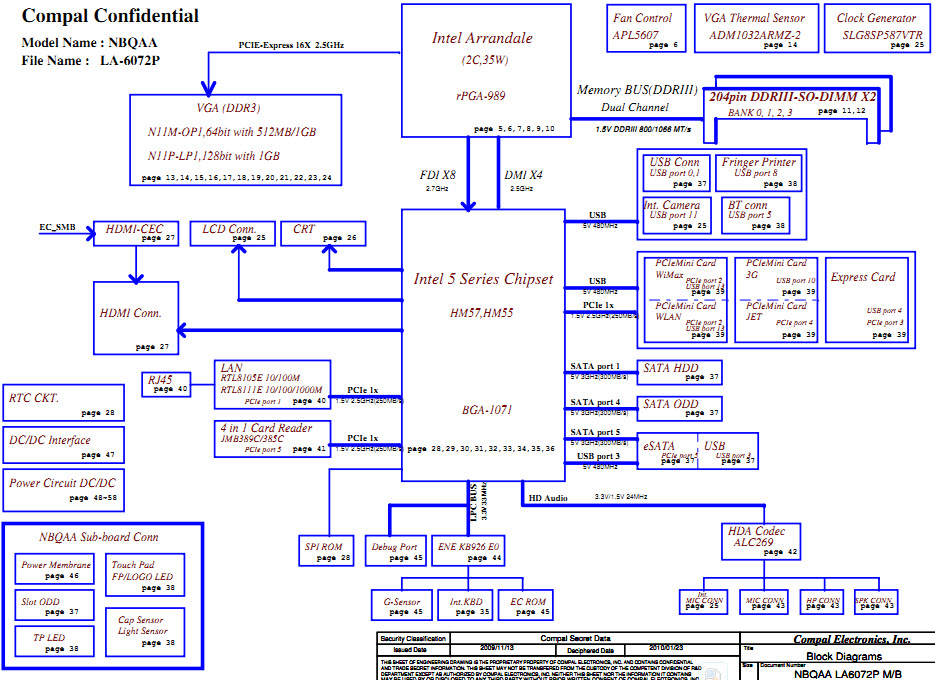

Toshiba Satellite M600/M645 Block Diagram:
Toshiba Satellite M600 M645 Block Diagram

Toshiba Satellite M600 M645 Block Diagram
