acer Aspire 1690 TravelMate 4100 4600 schematics(ZL2/ZL3)

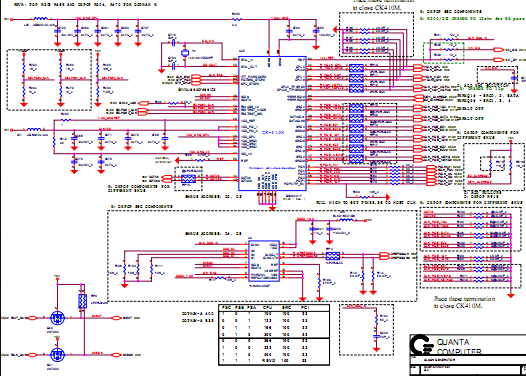

There are 2 pdf files of schematics, Quanta ZL2 and Quanta ZL3.
The motherbord schematic diagrams (2 PDF Files) for:
Aspire 1690 Series (1690WLMi, 1690LCi, 1690WLCi, 1691WLCi, 1691WLMi, 1692WLMi, 1694WLMi), Model ZL2/ZL3
TravelMate 4100 Series (4100WLMi, 4101WLMi, 4102WLMi), Model ZL2/ZL3
TravelMate 4600 Series (4601LCi, 4601LMi, 4601WLMi, 4601WNLCi, 4602LCi, 4602WLMi, 4603WLMi, 4604WLMi), Model ZL2/ZL3

CUP: Centrino
North Bridge: ALVISO
South Bridge: ICH6-M
OEM: Quanta Computer Inc.
PROJECT: ZL2 & ZL3
Format: PDF
File size: 3.44MB
Total Pages: 41 & 40
Language: English
Sale Price: 9.5$

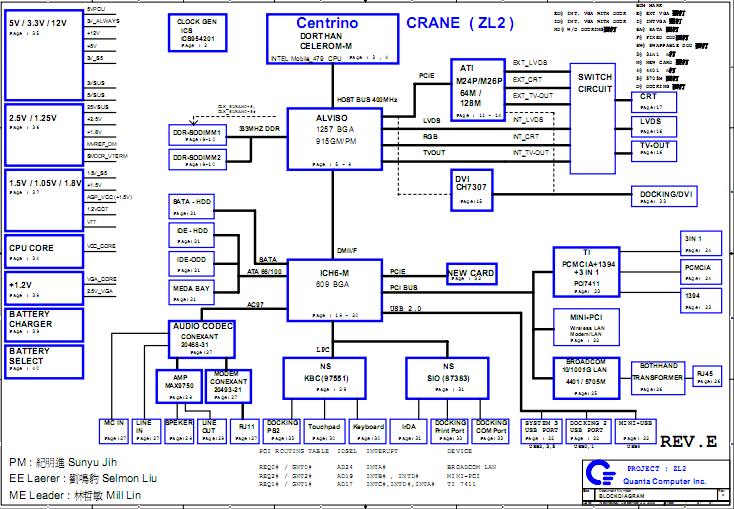

acer AS1690 TM4100 TM4600 Block Diagram:
