acer Aspire M5-481 Series schematic, Quanta Z09

The motherboard schematic for Acer Aspire M5-481 Series laptop/notebook, Quanta Z09 Mainboard.
CPU: Ivy Bridge 17W + NVIDIA N13P-GV 1GB
Chipset: PCH Panther Point
OEM: Quanta Computer Inc.
Project: Z09
Rev: 1A
Format: PDF
Total Pages: 40
File size: 1.42MB
Sale Price: 11.5$

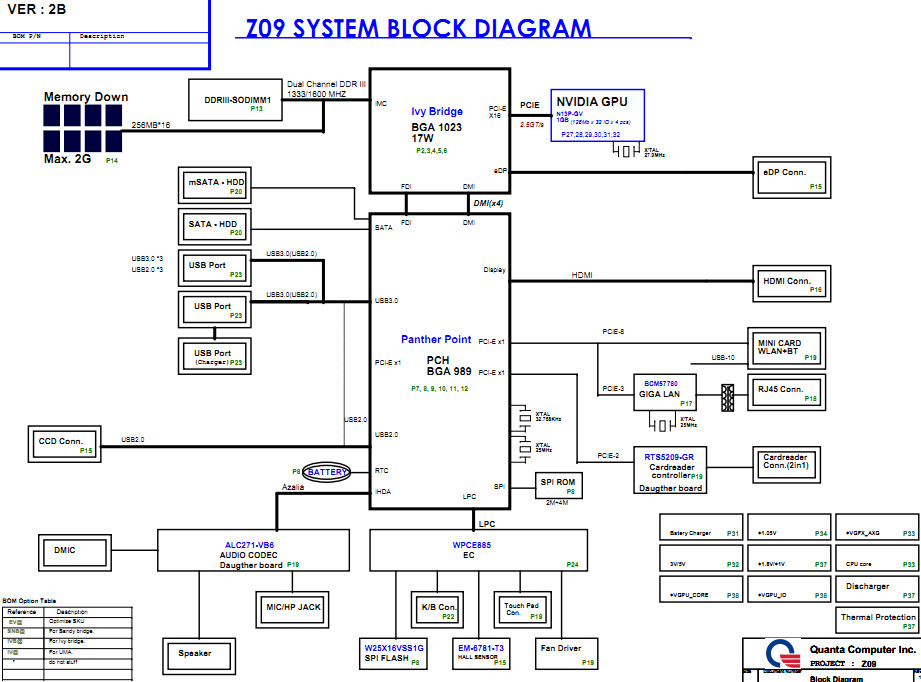

acer Aspire M5-481 Block Diagram:
