The motherboard schematic diagram(pdf) for Apple BT4. ULV DOTHAN+ALVISO(915GM)+ICH6-M.
CPU: Intel ULV Peutiun-M / ULV Celeron-M
North Bridge: Alviso-GM
South Bridge: ICH6-M
OEM: QUANTA COMPUTER
Title: BT4
Format: PDF
Total Pages: 37
File size: 919KB
Language: English
Sale Price: 12.5$
Click to view bigger picture:

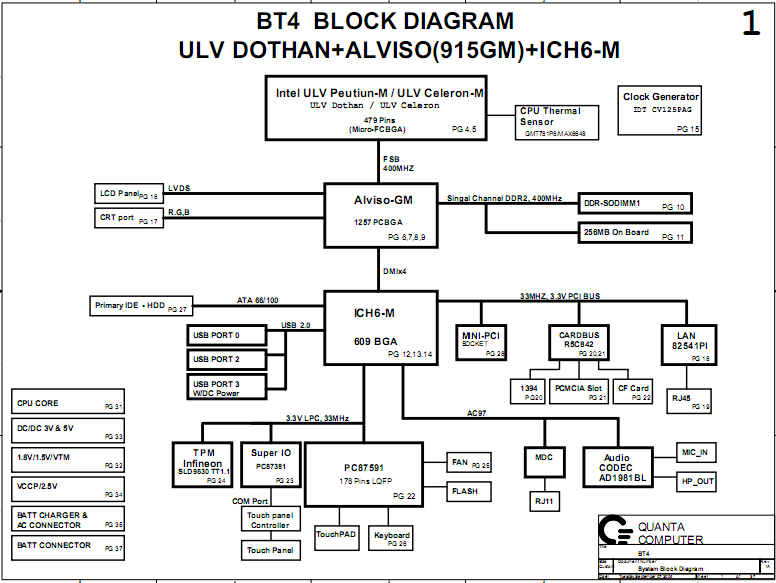

Apple BT4 Block Diagram

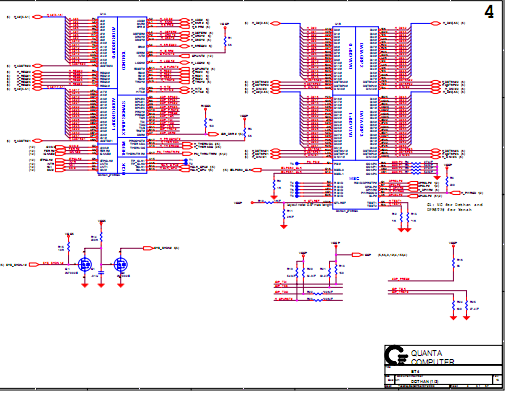

Apple BT4 Schematic Diagram
