Dell Inspiron 15 7557 7559 Schematics, Quanta AM9

DELL Schematics

The motherboard schematic and Boardview for Dell Inspiron 15 7557, Dell Inspiron 15 7559 laptop/notebook, Quanta AM9, DA0AM9MB8D0 Motherboard.
CPU: Intel Haswell
OEM: Quanta
PROJECT: AM9 15.6″
Format: PDF+BRD (BoardViewer)
Sale Price: 10.5$ (include Boardview)

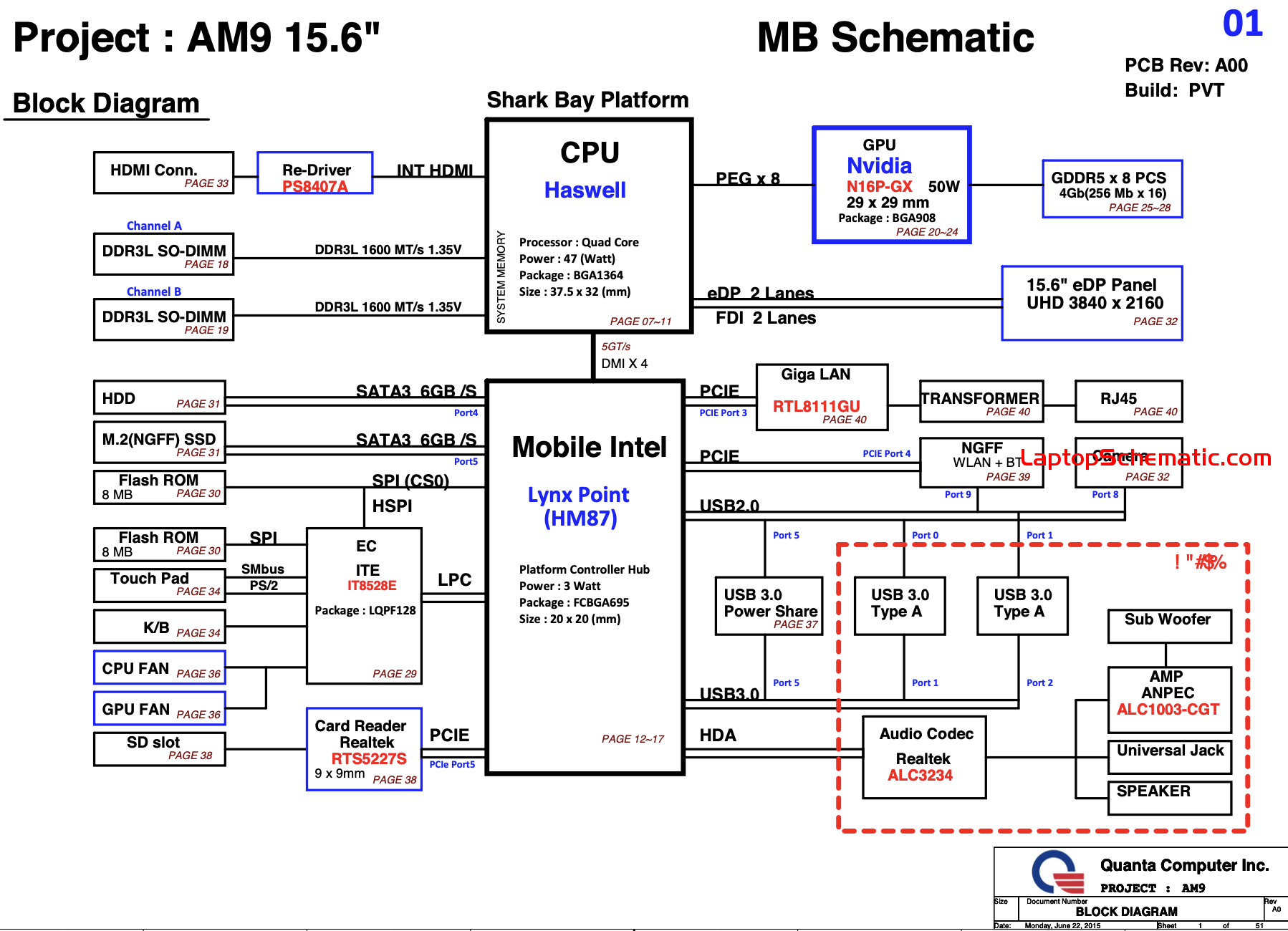

Dell Inspiron 7557 7559 AM9 Block Diagram:

Dell Inspiron 15 7559 AM9 Block Diagram

Dell Inspiron 15 7559 AM9 Block Diagram

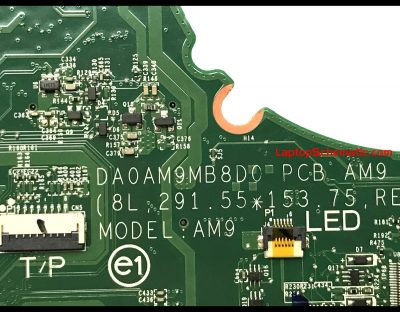

Dell Inspiron 7557 7559 AM9 Motherboard:

Dell Inspiron 7557 7559 AM9 Motherboard

Dell Inspiron 7557 7559 AM9 Motherboard
