Apple iMac 21.5-inch A1418 820-3588-A schematic & boardview
The motherboard schematic diagram (*.pdf) and Boardview (*.brd) for Apple iMac 21.5-inch A1418 2013 820-3588-A laptop/notebook, Apple J16 MLB_IG.
Part Number: 820-3588-A
DRAWING NUMBER: 051-0164
Format: PDF & BRD
LAST_MODIFIED=Fri Mar 22 11:24:26 2013
Sale Price: 11.5$ (include Boardview)

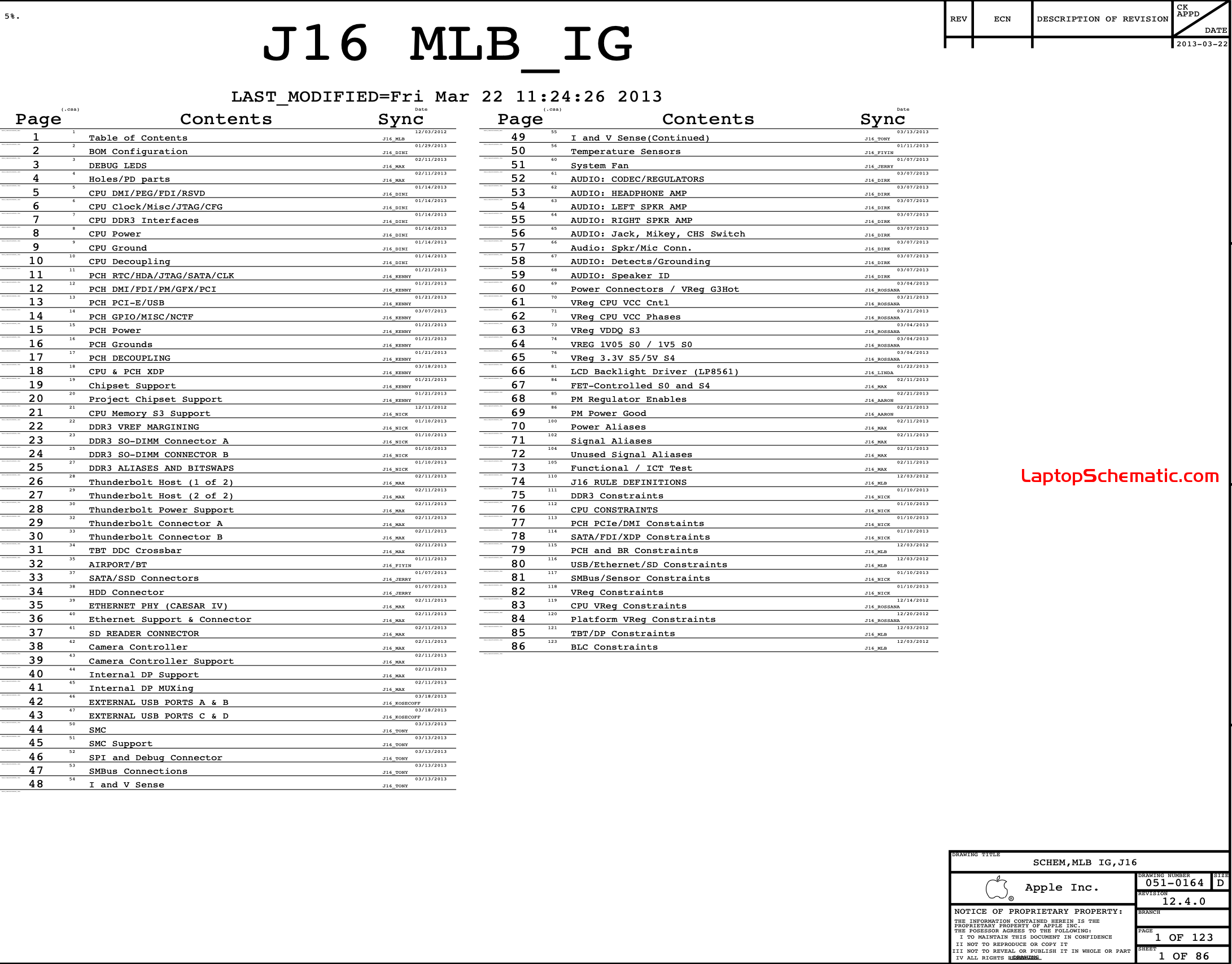

Apple iMac 21.5-inch A1418 820-3588-A Schematic:
Apple iMac 21.5-inch A1418 820-3588-A Schematic
Apple iMac 21.5-inch A1418 820-3588-A Boardview:
Apple iMac 21.5-inch A1418 820-3588-A Boardview
