Apple iMac 27 A1419 820-3298 Schematic & Boardview, 820-3298-A

The motherboard schematic diagram and Boardview (.brd) for Apple iMac 27 A1419 820-3298 Laptop/Notebook, 820-3298-A Motherboard.
PCB PART NUMBER: 820-3298-A
DRAWING TITLE: SCH,D8,MLB
DRAWING NUMBER: 051-9504
Format: PDF & BRD
Total sheet: 117
Language: English
Searchable PDF file, No watermark of website
Sale Price: 16.5$ (include Boardview)

Also included:
– BoardView file and BoardView software

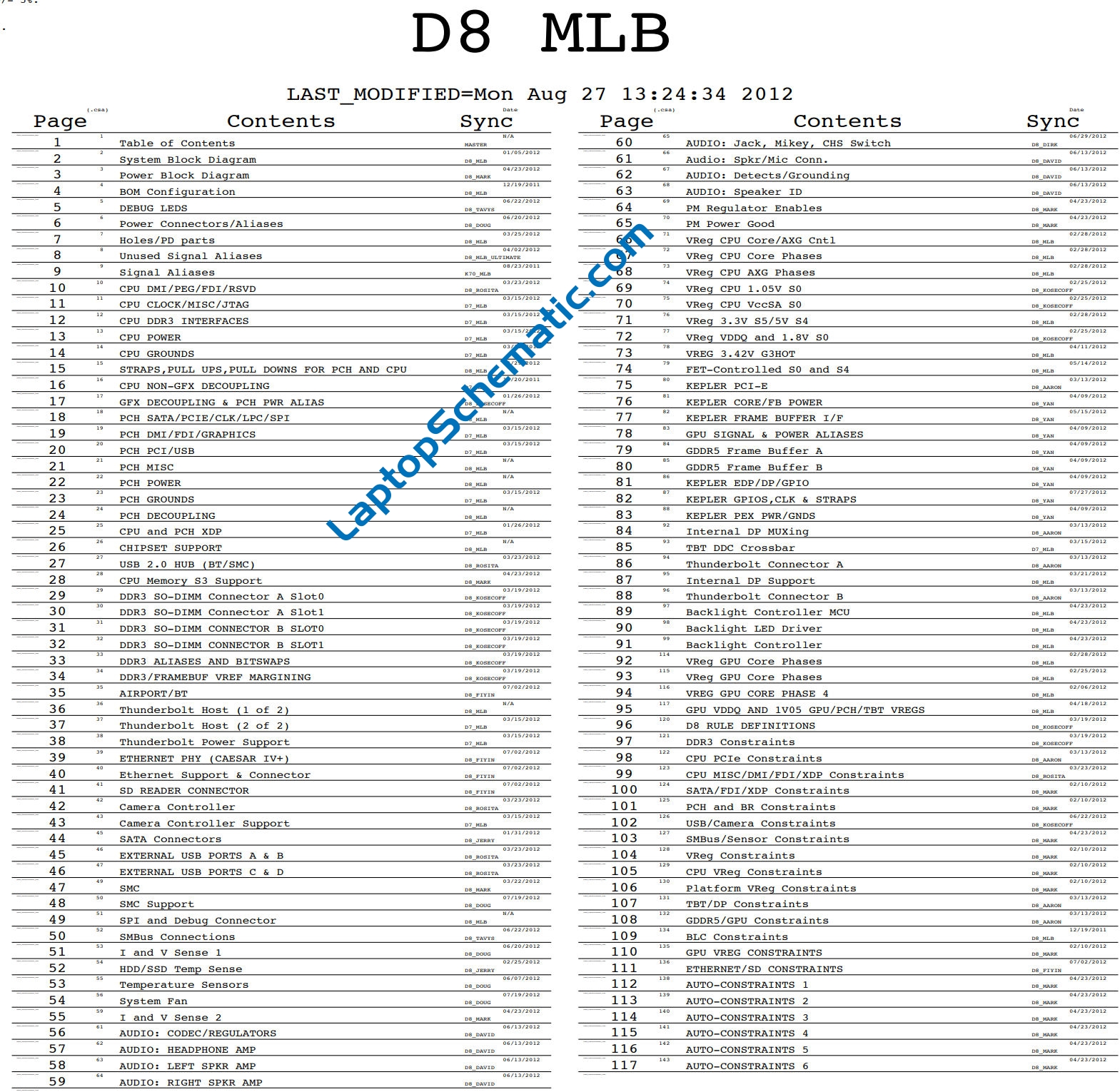

Apple iMac 27 A1419 820-3298 schematic diagram:
Apple iMac 27 A1419 820-3298 schematic diagram

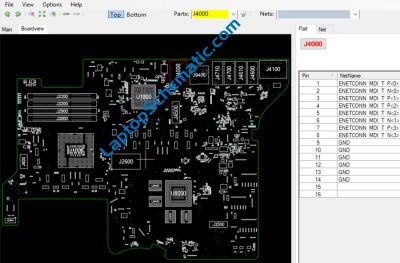

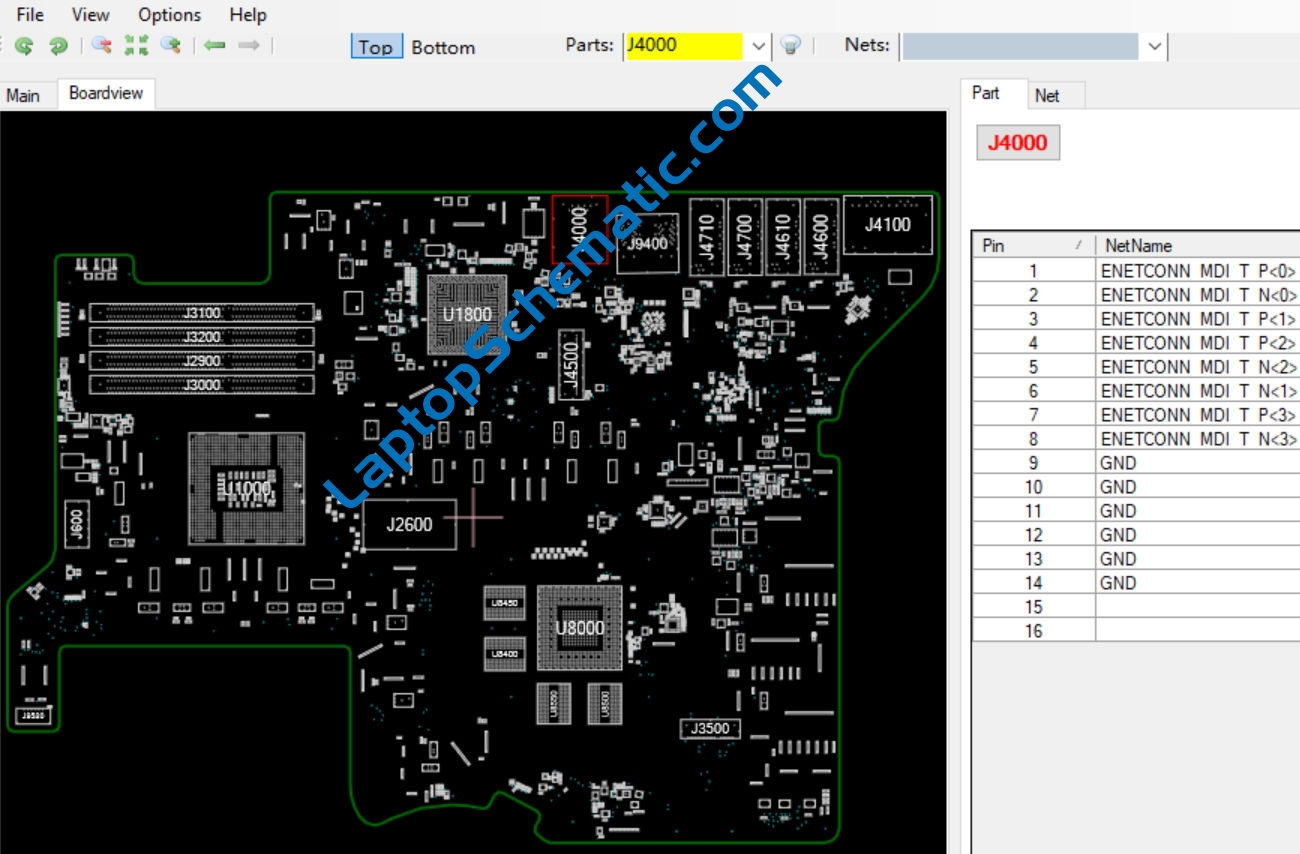

Apple iMac 27 A1419 820-3298 Boardview:
Apple iMac 27 A1419 820-3298 Boardview
