Apple iPad4 schematic, 820-3249, iPad 4th Gen X140

Apple X140 iPad 4 rev0.2 820-3249 schematic.
DRAWING TITLE: X140 MLB
DRAWING NUMBER: 051-9385
REVISION: A.0.0
SHEET: 41
Format: PDF
File size: 1.05MB(include Layout)
Sale Price: 13.5$

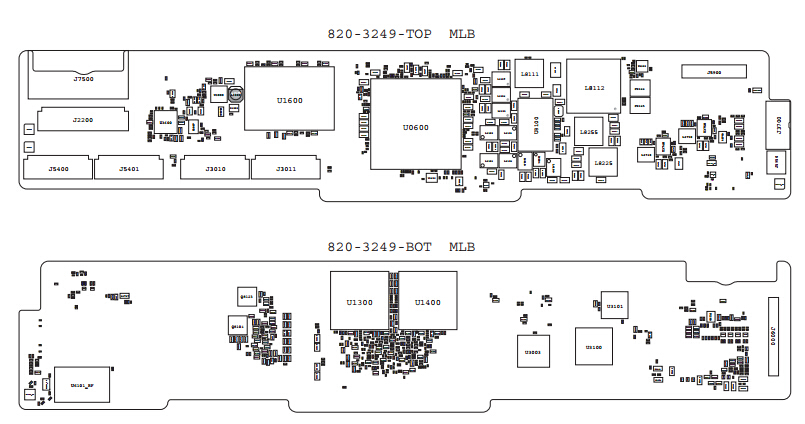

Apple X140 iPad 4 820-3249 Layout:

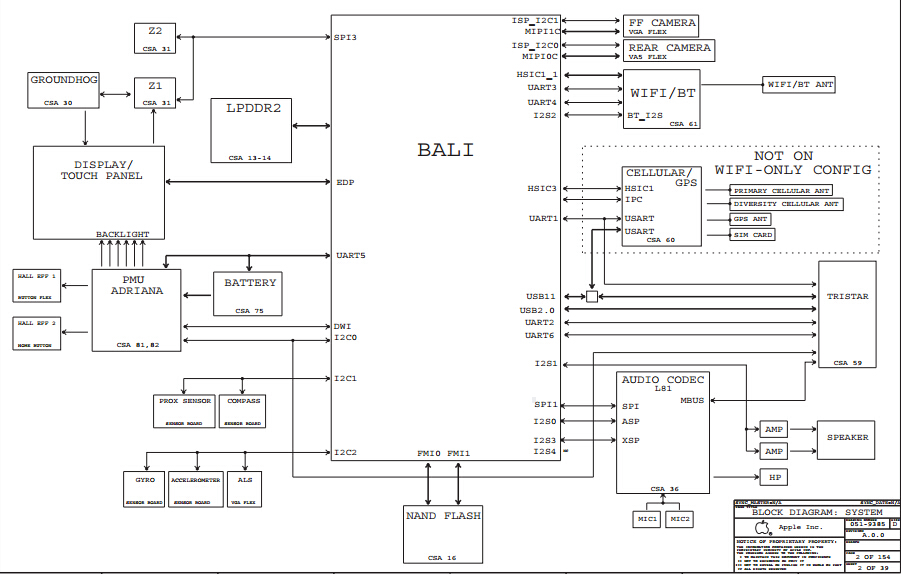

Apple X140 iPad 4 820-3249 Block Diagram:
