acer Aspire 5310 5315 5710 (LA-3771P)

The motherboard schematic diagrams for acer Aspire 5310 Series, acer Aspire 5310G Series, acer Aspire 5315 Series, acer Aspire 5710 Series, acer Aspire 5710G Series, acer Aspire 5710Z Series laptop/notebook, Compal LA-3771P. JDW50/JDY70 Schematics Document, Intel Merom Processor with Crestline(PM945/GM945) + DDRII + ICH7M (With ATI MXM/B).
CUP: Intel Merom Processor
North Bridge: Intel 945/PM/GM/943GML
South Bridge: Intel ICH7-M
OEM: Compal Electronics, Inc.
Document Number: JDW50/JDYL70 M/B LA-3771P
File Name: LA-3771P
Model Name: JDW50/70
REV: 0.3
Format: PDF
Total Pages: 44
File size: 1.36MB
Language: English
Sale Price: 15.5$

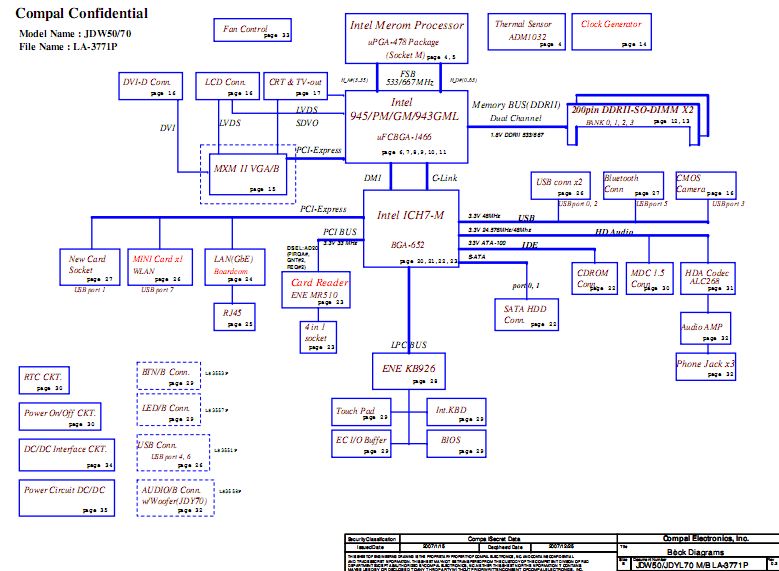

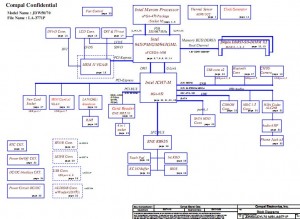

Compal LA-3771P Block Diagram:
