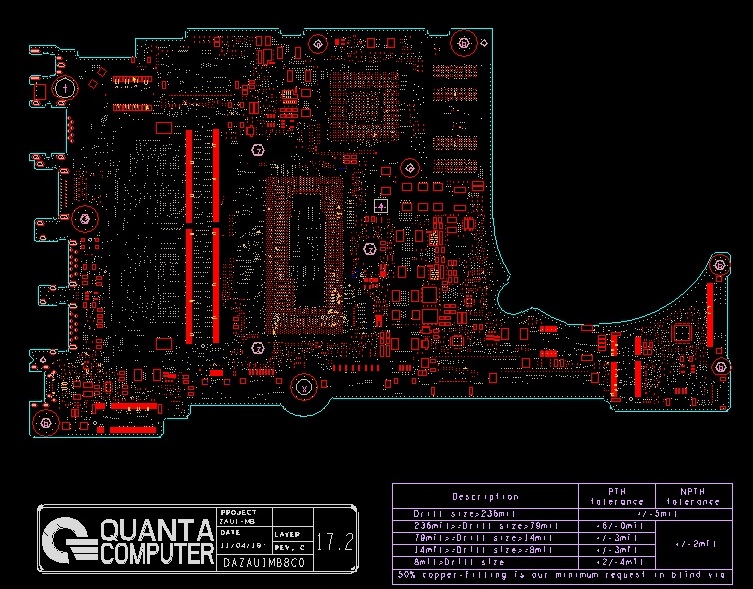

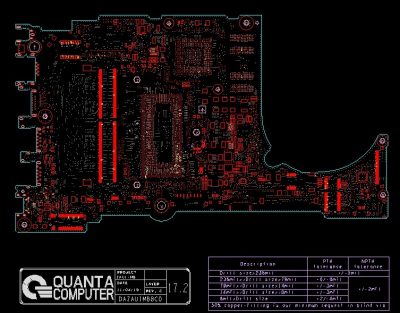

Acer Aspire A515-55 Schematic & Boardview Quanta ZAUI DAZAUIMB8C0

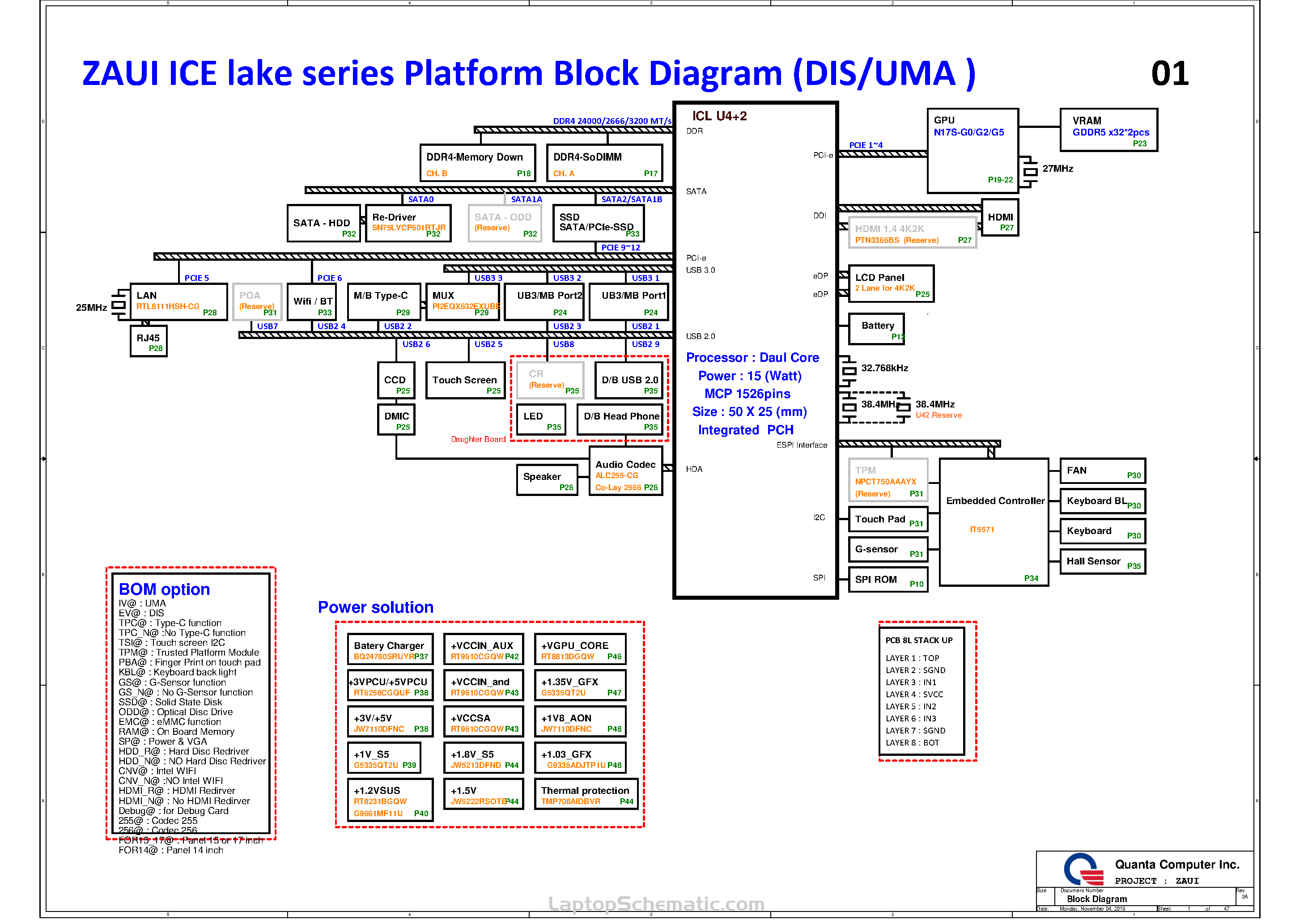

The motherboard schematic diagram and Boardview (*.brd) for Acer Aspire A515-55 Laptop/Notebook, Quanta ZAUI DAZAUIMB8C0 motherboard.
CPU/HUB/RAM: Intel IceLake-U / DDR4
GPU/VRAM: UMA
EC/KBC/SIO: IT5571
OEM: Quanta
Format: PDF (No watermark of website) / BRD
Sale Price: 16.5$

Boardview Software

• Open Boardview(.brd) file with Allegro Free Physical Viewer(Download)
