Dell Alienware M11x schematic, NAP00 LA-5811P

The schematic diagram for Dell Alienware M11x laptop/notebook, NAP00 Mainboard Compal LA-5811P. Penryn + Cantiga + ICH9-M, DISCRETE VGA N11P-GS1 (Switchable Graphics).
CPU: Mobile Penyn ULV Dual Core (SFF)
North Bridge: Intel Cantiga GS45 (SFF)+ NVIDIA N11P-GS1
South Bridge: Intel ICH9-M (SFF)
OEM: Compal Electronics, Inc.
MODEL NAME: NAP00
PCB NAME: LA-5811P MB
COMPAL P/N: DAA00001P00
Document Number: LA-5811P
Rev: 1.0
Format: PDF
Total Pages: 58
File size: 1.75MB
Sale Price: 11.5$

Bonus:
NAP00 USB_Audio Button Board : LS-5814P USB_Audio/B – DA40000PC00
NAP00 Function Button Board: LS-5811P Function/B – DA40000P900
NAP00 LED LOGO Button Board: LS-5812P Logo/B – DA40000PA00
NAP00 Power Key Button Board: LS-5813P Power Key/B – DA40000PB00
NAP00 LED_R Button Board: LS-5815P Right/B – DA40000PD00
NAP00 LED_L Button Board: LS-5816P left Headlight/B – DA0000PE00

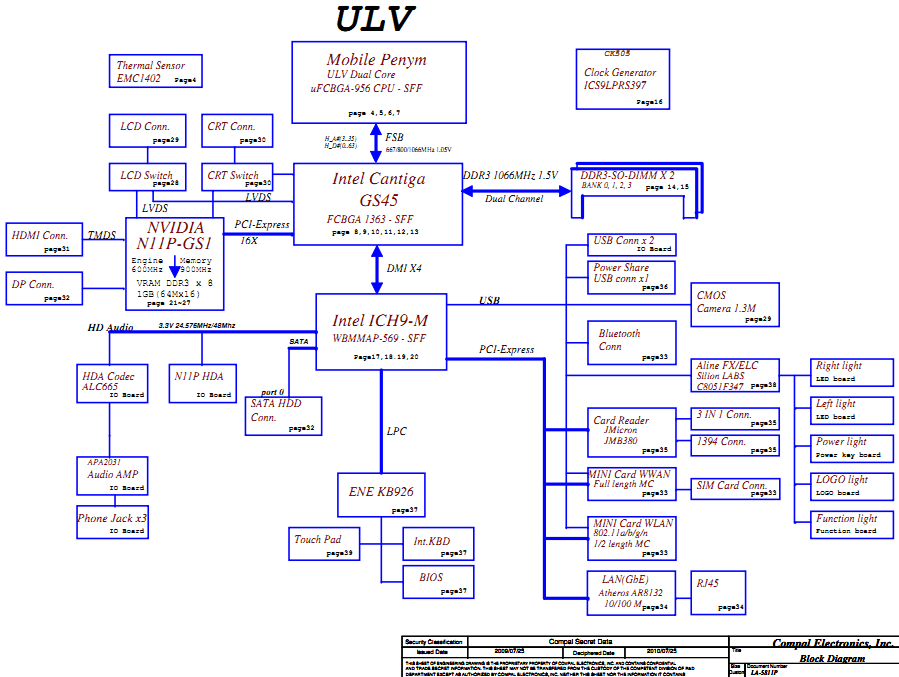

Dell Alienware M11x schematic Block Diagram:
