Dell Alienware 15 R4 Alienware 17 R5 Schematic & Boardview DDR51 LA-F551P
The motherboard schematic and Boardview (*.cad) for Dell Alienware 15 R4, Dell Alienware 17 R5 laptop/notebook. DDR51 LA-F551P, Coffee Lake-H 45W, CNL PCH-H with nVIDIA N17E.
CPU: Coffee Lake-H
OEM: Compal Electronics, Inc.
MODEL NAME : DDR51(15″)/DDR71(17″)
PCB NO: DDR51 LA-F551P
Document Number: LA-F551P
Sale Price: 16.5$

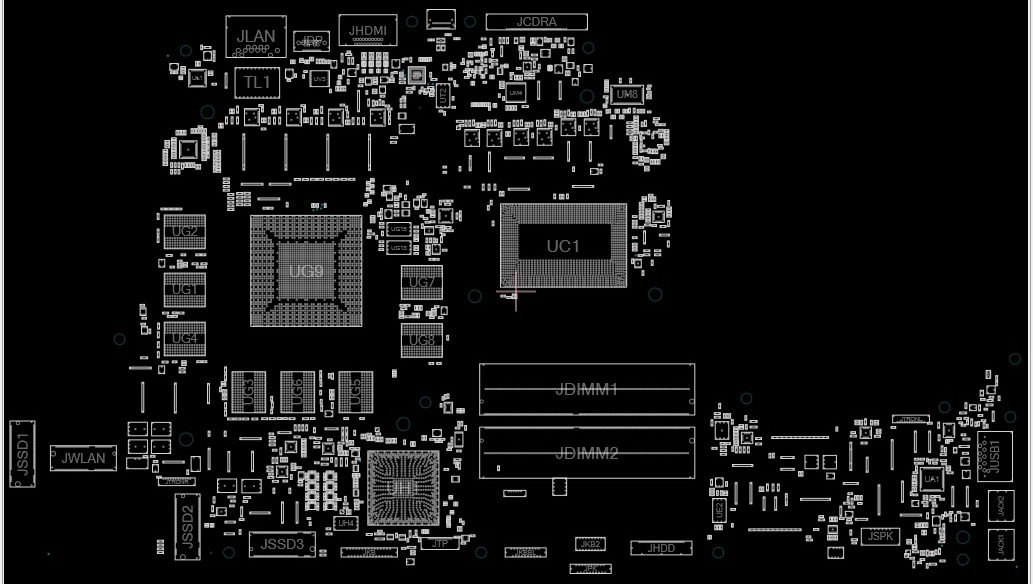

- Open Boardview(.cad) file with BoardViewer

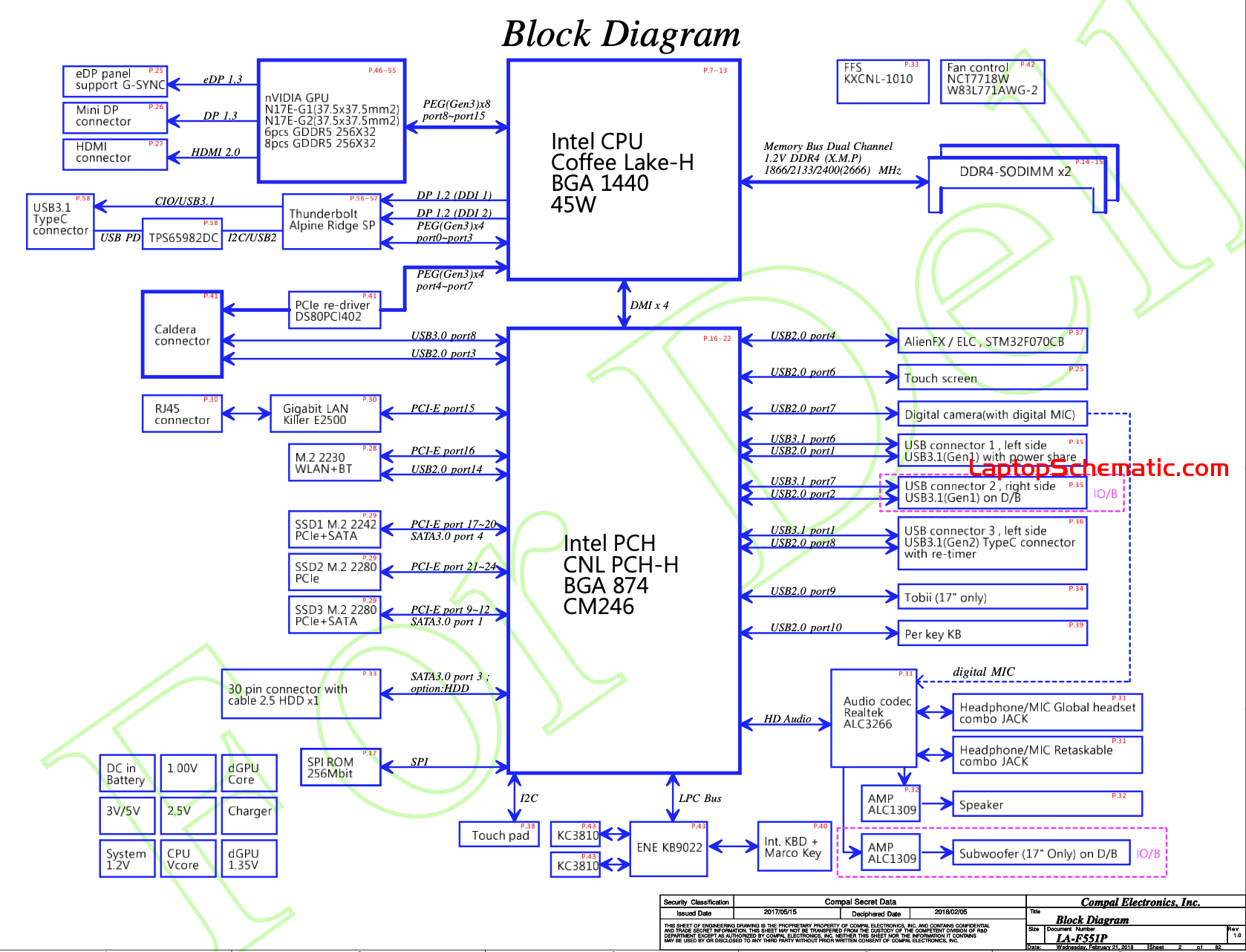

Dell Alienware 15 R4 Alienware 17 R5 LA-F551P Block Diagram:
Dell Alienware 15 R4 Alienware 17 R5 LA-F551P Block Diagram

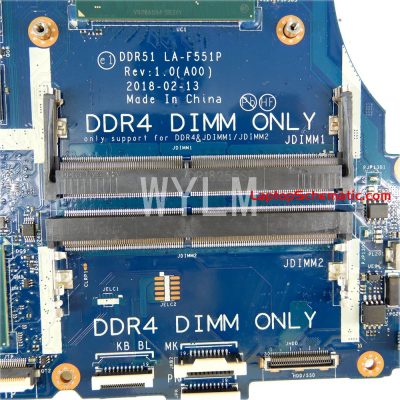

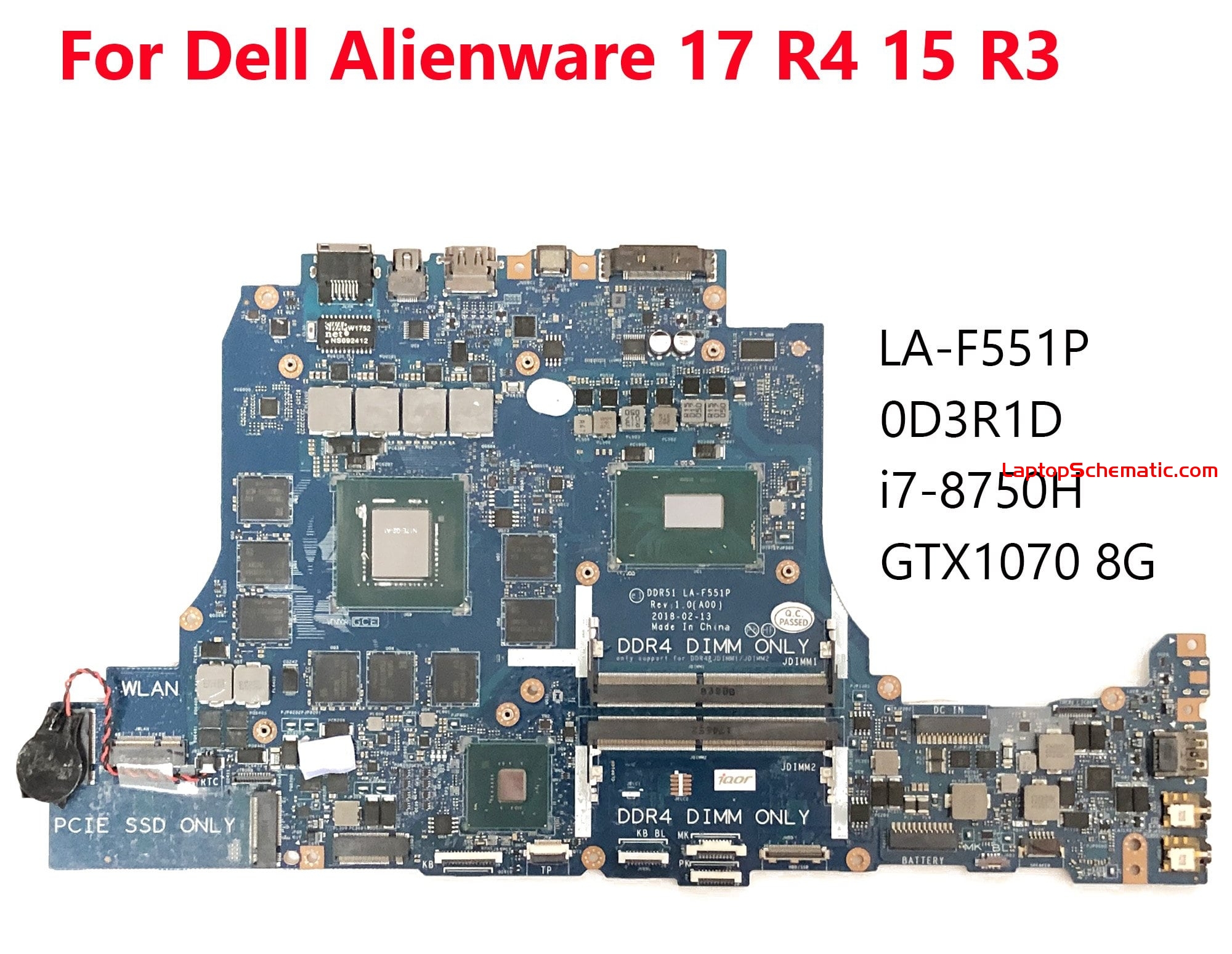

Dell Alienware 15 R4 Alienware 17 R5 LA-F551P Motherboard Photo:
