Dell Inspiron 17R N7010(DIS) schematic & Boardview, Quanta UM9B/UM9C

The schematic and boardview for Dell Inspiron 17R N7010(DISCRETE) schematic, Quanta UM9B/UM9C Motherboard.
CPU: INTEL Arrandale
Discrete VGA AMD Madison_LP
Chipset: Intel PCH Ibex Peak-m
OEM: Quanta Computer Inc
Project: UM9B/C DIS
Rev: 3A
Format: PDF
Total Pages: 51
Sale Price: 12.5$ (include boardview)

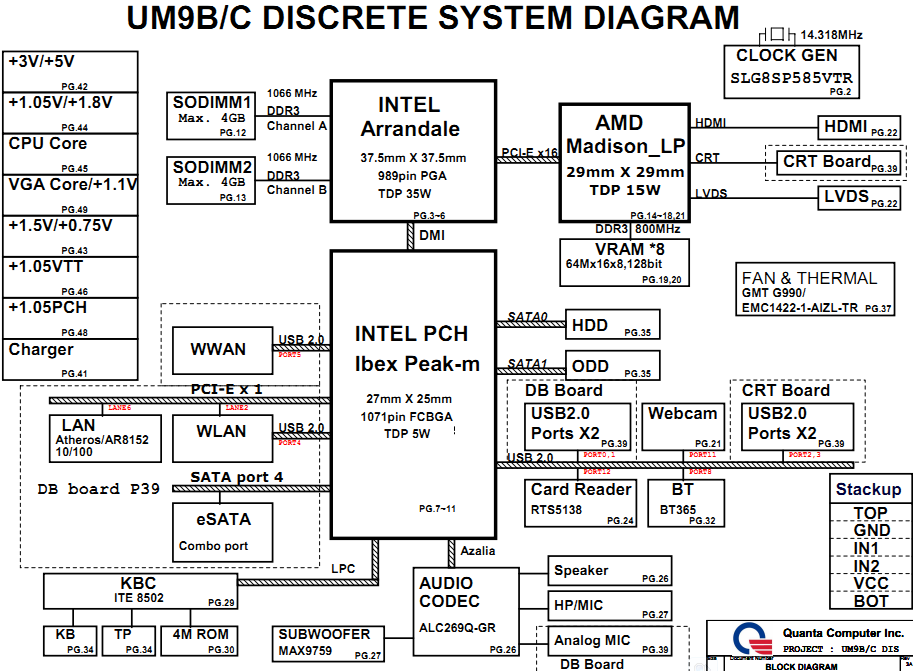

Dell Inspiron 17R N7010(UM9B/C) Block Diagram:

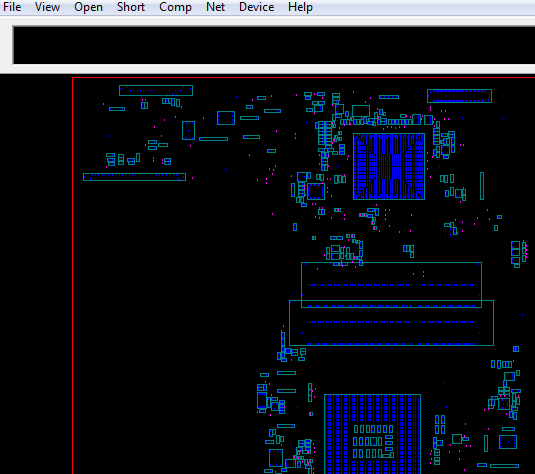

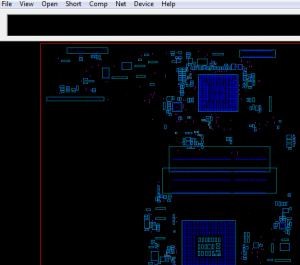

Dell Inspiron 17R N7010 (UM9B) Boardview:
