Dell Inspiron N5010 (AMD) Schematic Circuit Diagram

The motherboard schematic and IO board schematic for Dell Inspiron N5010 (AMD) laptop, Wistron Berry Discrete/UMA Schematics Document, AMD Danube CPU S1g4, AMD GPU Madison-LP/M96-LP M2, RS880M + SB820M.
CPU: AMD Champlain CPU S1G4
North Bridge: AMD RS880M + ATI M96-M2 LP
South Bridge: AMD SB820M
OEM: Wistron Corporation
Project code :91.4HH01.001
Revision:X-Build
Document Number: Berry AMD Discrete/UMA
REV: A00
Format: PDF
Total Pages: 95
Price: $16.5 (include IO board schematic)

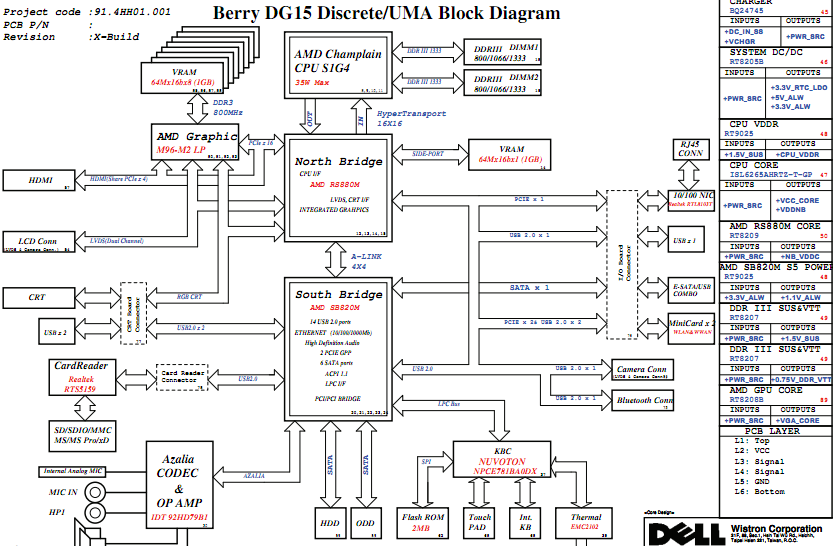

Dell Inspiron N5010 (AMD) Block Diagram:
