Dell Latitude 3301 Inspiron 5391 7391 Vostro 5391 5390 Schematics, 18769-1

The motherboard schematic for Dell Latitude 3301, Dell Inspiron 5391 7391, Dell Vostro 5391 5390 laptop/notebook, Wistron WASP 13″ WHL-U, 18769-1 Motherboard.
CPU: Intel Whiskey Lake-U
OEM: Wistron
PCB P/N: 18769-1
Project code:
N5 -> 4PD0GW010001
V5 -> 4PD0GX010001
L -> 4PD0H6010001
Document Number: WASP 13″ WHL-U
Sale Price: 15.5$

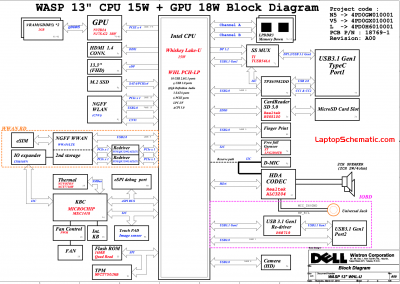

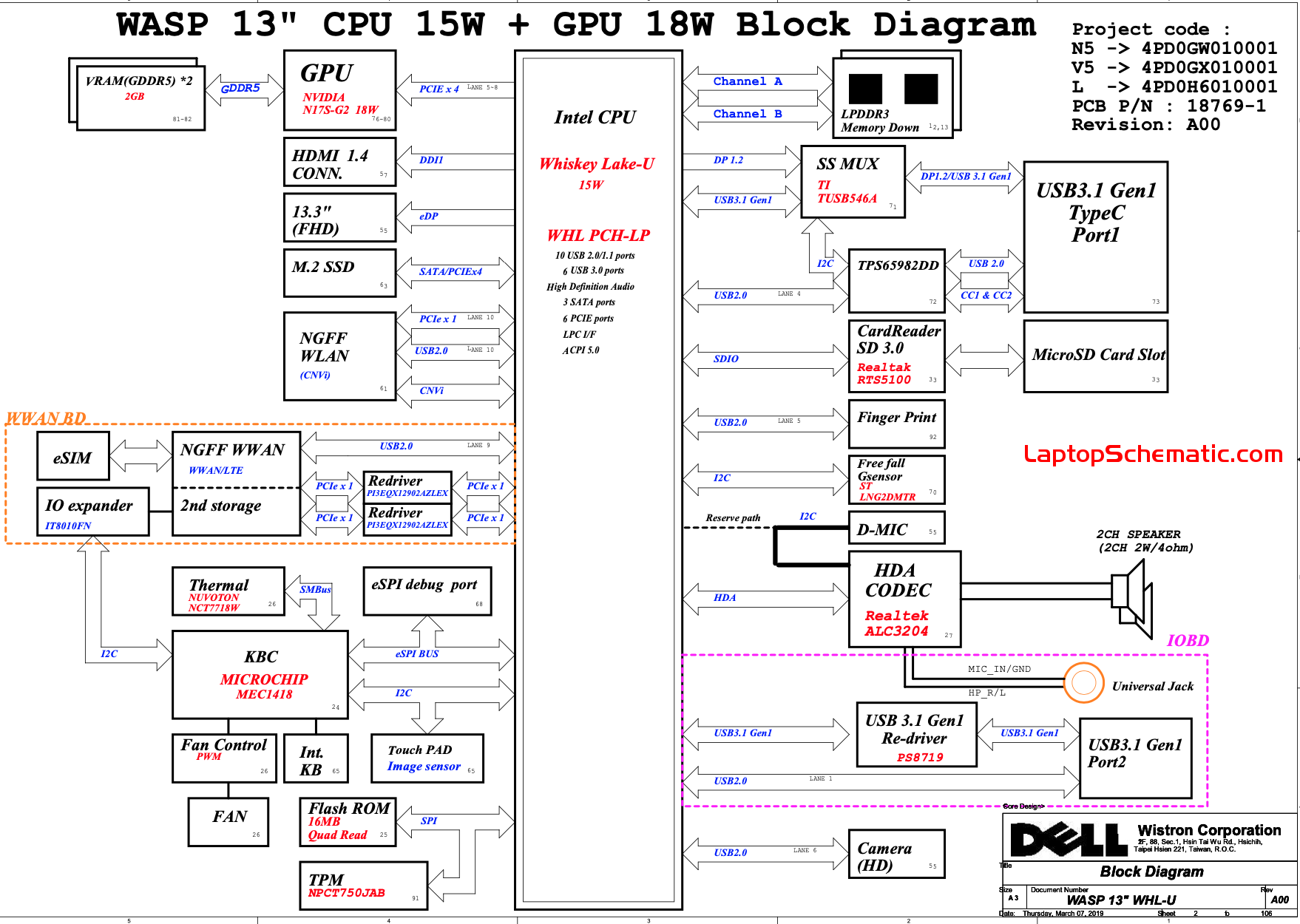

Dell Latitude 3301 18769-1 Block Diagram:

Dell Latitude 3301 18769-1 Block Diagram

Dell Latitude 3301 18769-1 Block Diagram

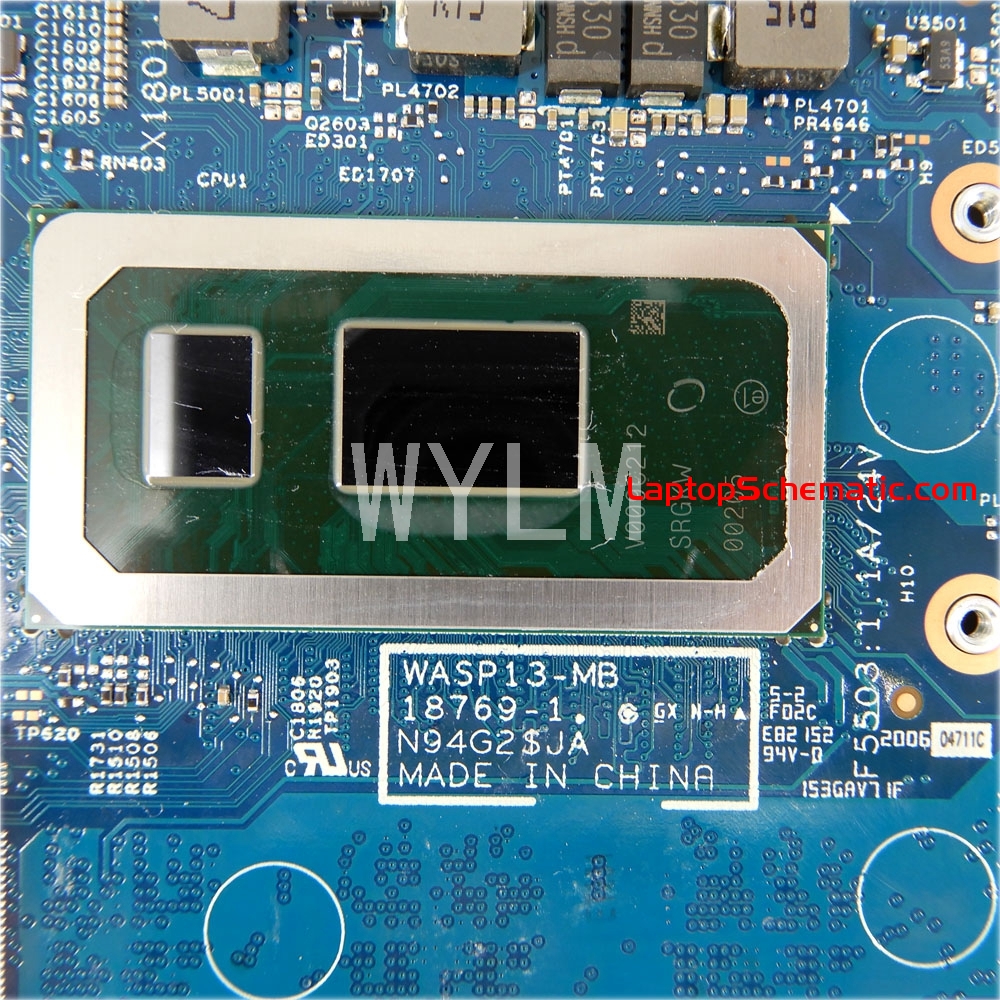

Dell Latitude 3301 18769-1 Motherboard Photo:

Dell Latitude 3301 18769-1 Motherboard

Dell Latitude 3301 18769-1 Motherboard
