Dell Latitude D620 schematic diagram(UMA)

The laptop motherboard schematic diagram for Dell Latitude D620 (UMA) laptop/notebook, Travis (UMA) Schematics Document, uFCPGA Mobile Yonah Intel Calistoga + ICH7M, Compal LA-2791.
CUP: Pentium-M Yonah-2M
North Bridge: INTEL Calistoga
South Bridge: INTEL ICH7-M
OEM: Compal Electronics, Inc.
Document Number: LA-2791
MODEL NAME: HAL00
PCB NO: LA-2791
COMPAL P/N: 45135631L01
BOM NO. 45135631L01
PCB P/N: DA800002L1L
MB PCB Part Number: DAA0000040L
MB PCB Description: PCB ZJX LA-2791 REV0 M/B UMA
Format: PDF
Total Pages: 63
File size: 914KB
Language: English
Sale Price: 15.5$

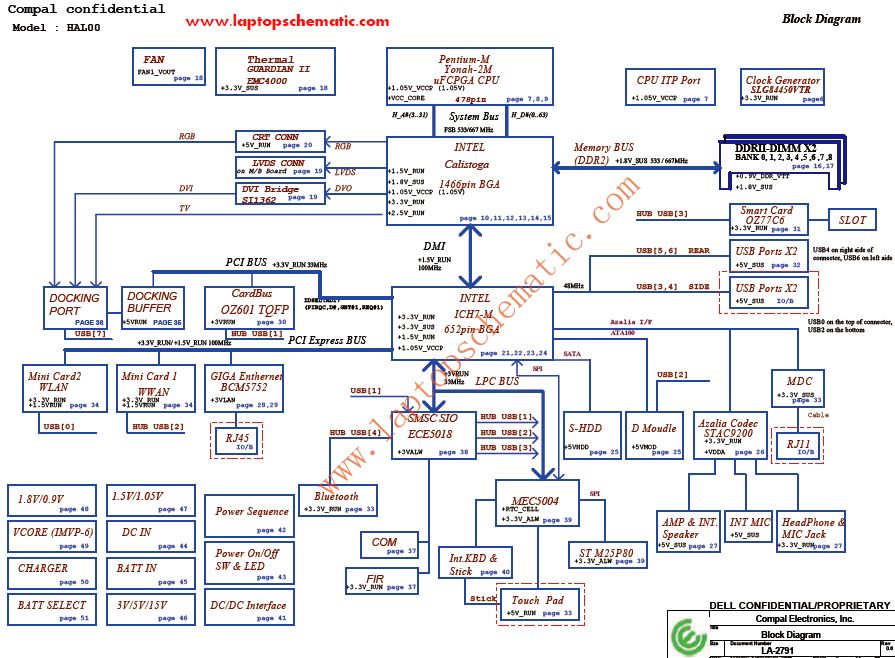

Dell Latitude D620(UMA) Block Diagram:
