Dell Latitude 3540 Schematic – ZAL00 LA-A491P

The motherboard schematic for Dell Latitude 3540 laptop/notebook, ZAL00 Mainboard, Compal LA-A491P.
CPU: Intel Haswell Processor 15W DC BGA1168
VGA AMD Venus Pro , 25W
Chipset: Intel Lynx Point-LP
OEM: Compal Electronics, Inc.
Document Number : LA-A491P
Total sheet: 58
MODEL NAME : ZAL00
PROJECT CODE : ANRVBW0100
PCB NO : DA8000WW000 LA-A491P M/B
Sale Price: 12.5$

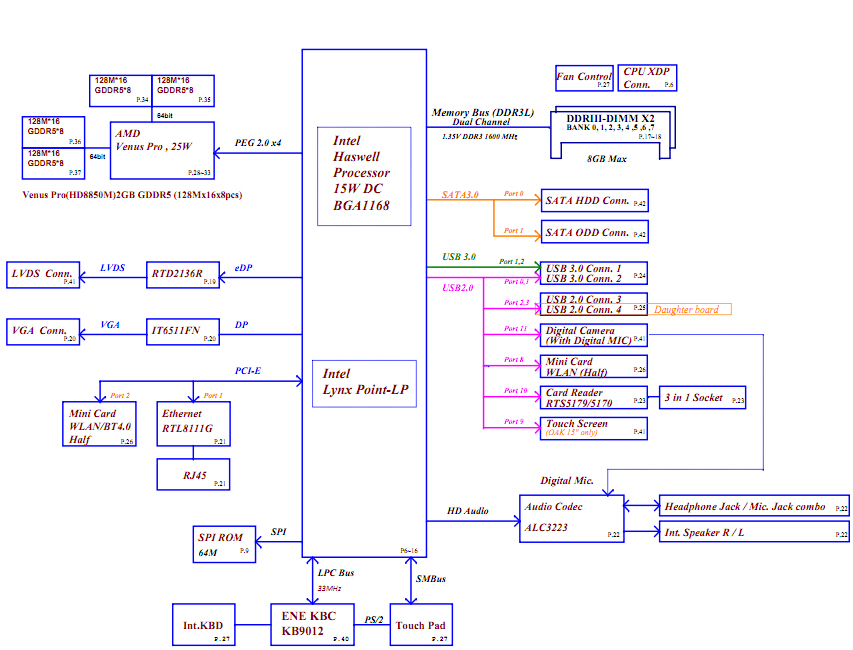

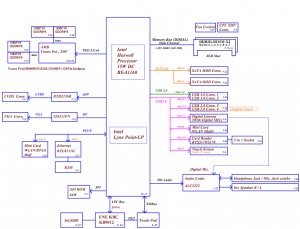

Dell Latitude 3540 Block Diagram:
Dell Latitude 3540 Block Diagram

Dell Latitude 3540 Block Diagram
