DELL XPS M1330 schematic diagram(Discrete)

The motherboard schematic diagram for DELL XPS M1330(Discrete) laptop/notebook. Thurman Discrete VGA nVidia G86 Schematics Document, uFCPGA Mobile Merom, Intel Crestline-PM + ICH8M, REV : -1(DELL:A00).
CUP: Intel Mobile CPU Merom 4M FSB:667/ 800 Mhz
North Bridge: Crestline-PM
South Bridge: ICH8-M
Title: Thurman Discrete
Project code: 91.4C301.001
PCB P/N: 06247
REVISION: -1
Format: PDF
Total Pages: 50
File size: 1.34MB
Language: English
Sale Price: 15.5$

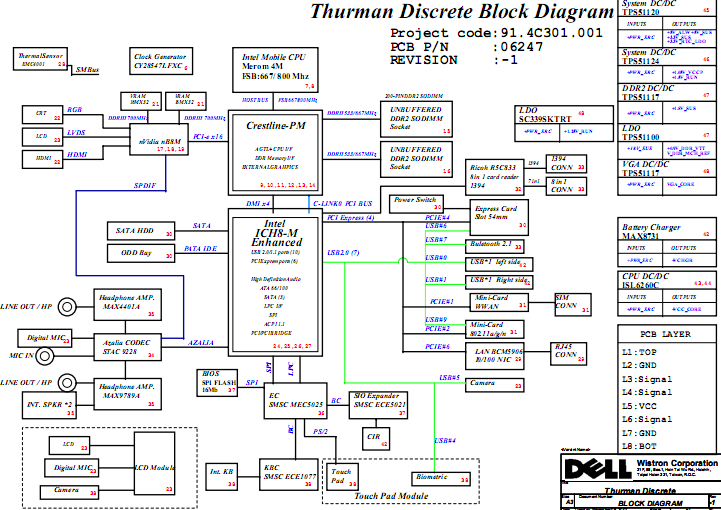

DELL XPS M1330 Block Diagram(Discrete):

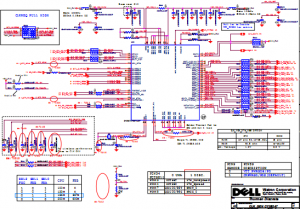

DELL XPS M1330 Schematics(Discrete):
