Fujitsu Esprimo Mobile V5505/V5545 schematic, 06254-1 C45/C46

The schematic diagram for Fujitsu Esprimo Mobile V5505, Fujitsu Esprimo Mobile V5545 laptop, Wistron C45/C46.
CPU: Mobile Merom 479 2G/2.33G
North Bridge: Crestline + ATI M71/M72 VRAMx4 128MB
South Bridge: ICH8M
OEM: Wistron Corporation
C45 Project code: 91.4U501.001
C46 Project code: 91.4V001.001
PCB Number : 06254
Revision: -1
Document Number: C45/C46
Rev: -1
Format: PDF
Total Pages: 45
File size: 1.22MB
Sale Price: 9.5$ (include boardview)

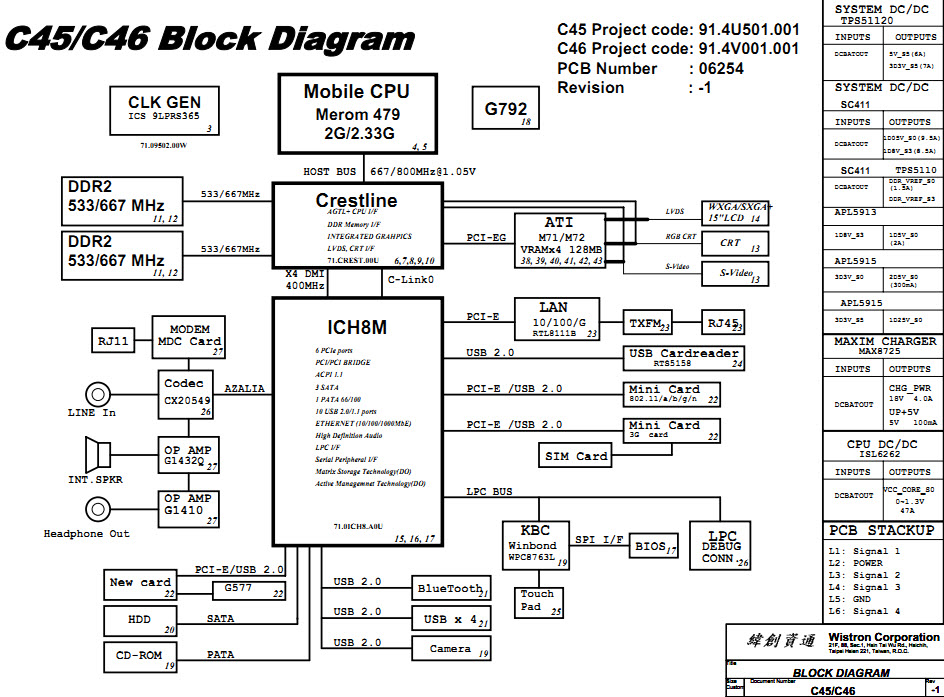

Fujitsu Esprimo Mobile V5505/V5545 Block Diagram:

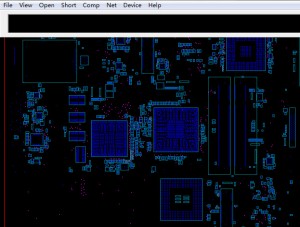

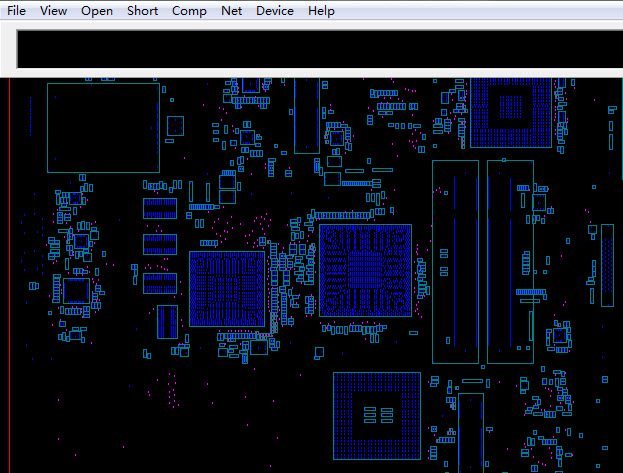

Fujitsu Esprimo Mobile V5505 V5545 Boardview:
