Lenovo ThinkPad P1 Gen2 Schematic & Boardview Padme-2 LPM-2 18809

Lenovo Schematics

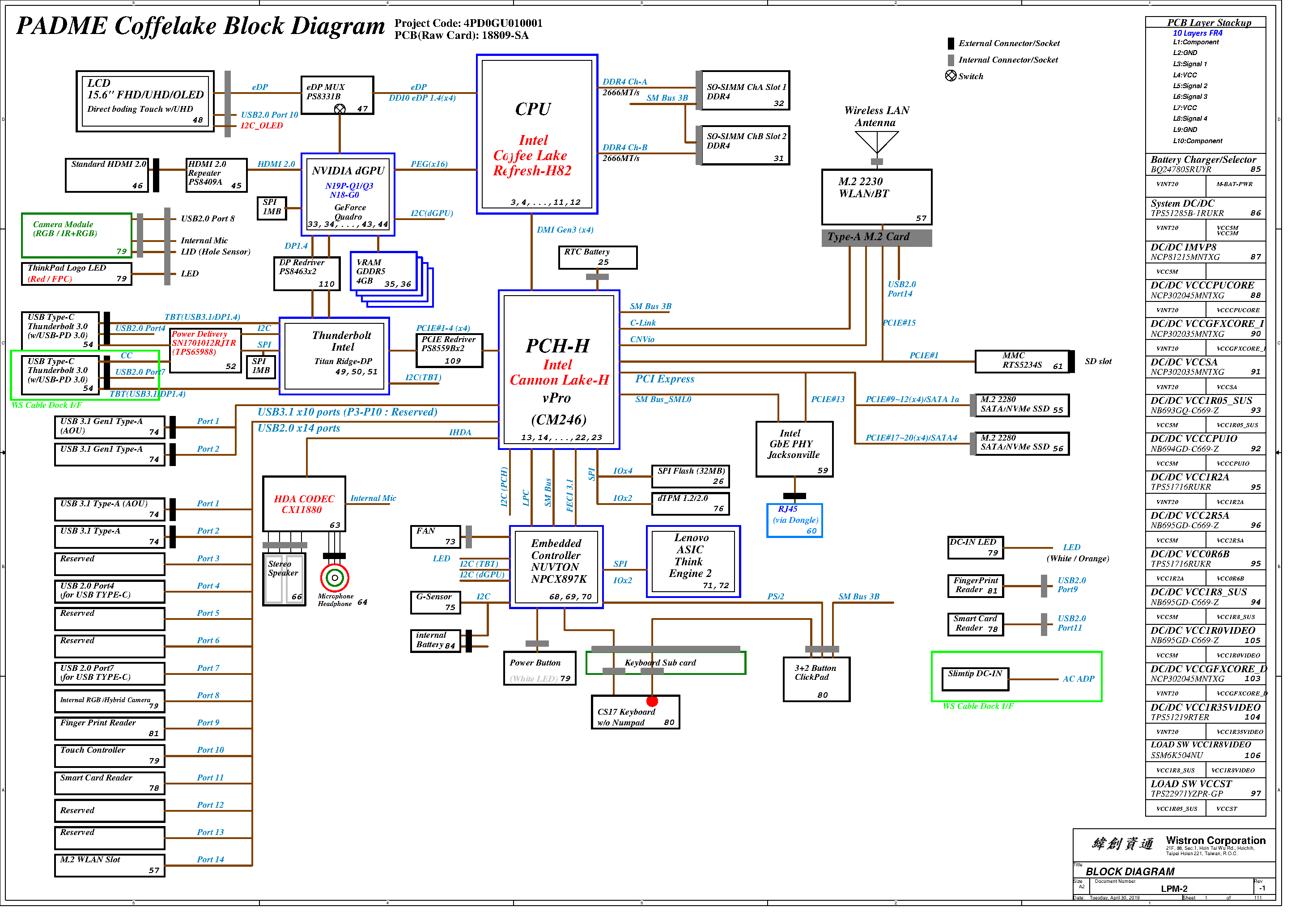

Schematic (*.pdf), Boardview (*.brd) for Lenovo ThinkPad P1 Gen2 laptop, Wistron Padme-2 LPM-2 18809 Motherboard.

CPU/HUB/RAM : Intel Coffee Lake Refresh / CM246 / DDR4
GPU: UMA or DIS (N18P-G0 / N19P-Q1 / N19P-Q3 GRRD5)
EC: Nuvoton NPCX897K
Audio: CX11880
LAN: WGI219LM
Cardreader : RTS5234S
eDP/HDMI/TBT : PS8331B, PS8409A, PS8559B, SN1701012RJTR (TPS65988), JHL7540

PCB(Raw Card): 18809-SA
Language: English
Format：PDF, BRD
Sale Price: 13.5$

Original document, no irrelevant watermark.

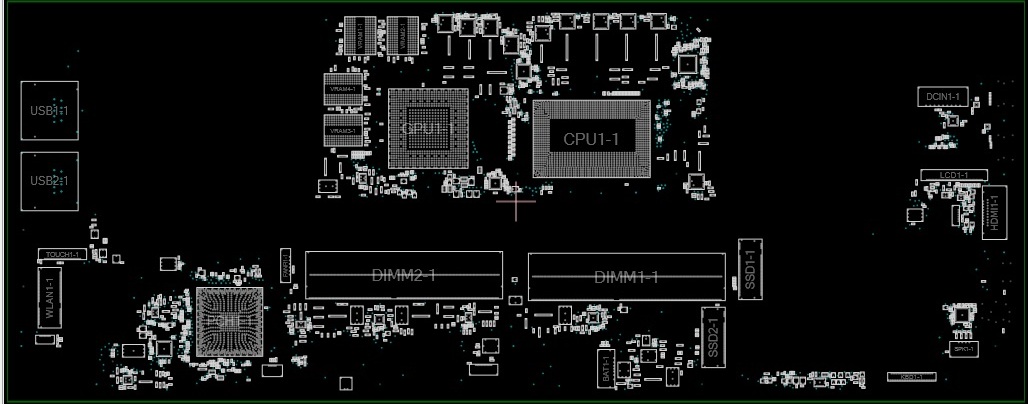

Boardview Software

    • Open Boardview(*.brd) file with BoardViewer (Download)
