Fujitsu Siemens Amilo L7320 schematic, FIC LM23W

The schematic diagram for Fujitsu Siemens Amilo L7320 laptop/notebook, FIC LM23W Motherboard.
Board name: Mother Board Schematic
Project: LM23W
Version: 0.1
Current Date: March 15 , 2006
CPU: Intel Yonah Celeron 533MHz
North Bridge: VIA VN800
South Bridge: VT8237
OEM: First International Computer,Inc
Title: LM7W+
Rev: 0.2
Format: PDF
Total pages: 56
Total size: 1.10MB
Sale Price: 8.5$

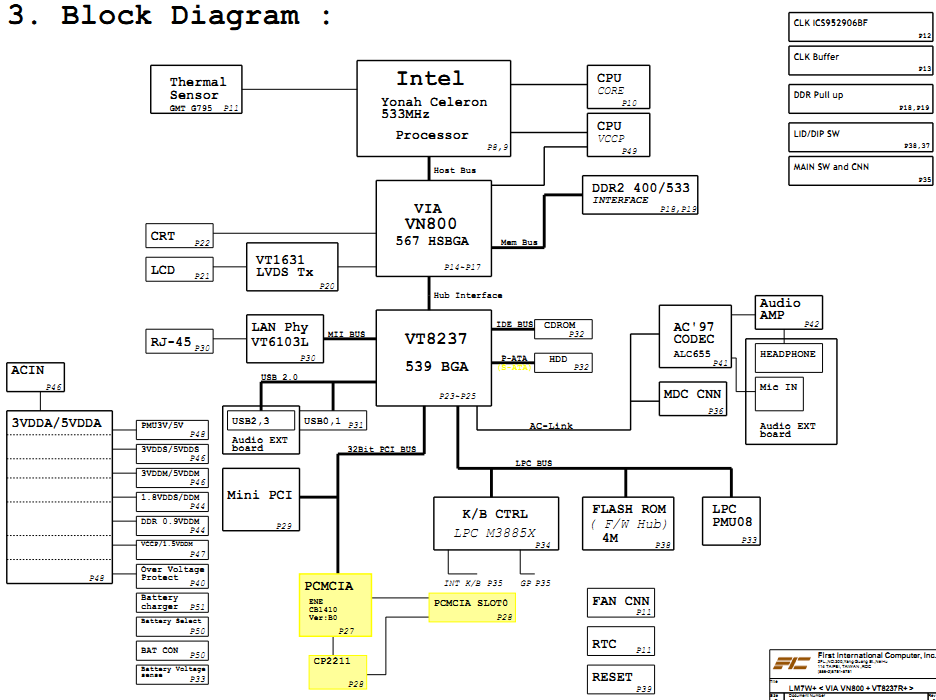

Fujitsu Siemens Amilo L7320 Block Diagram:
