Gateway MT6451 MT6485 MX6453 schematic, Quanta MA3F

The motherboard schematic and boardview(.brd file) for Gateway MT6451, Gateway MT6485, Gateway MX6453 laptop/notebook, Quanta MA3F Mainboard.
CPU: AMD Athlon 64 & Sempron
North Bridge: RS485M/RS600M
South Bridge: IXP460
OEM: Quanta Computer Inc.
PROJECT: MA3F
Rev: 1A
Format: PDF
Total Pages: 35
Sale Price: 8.5$

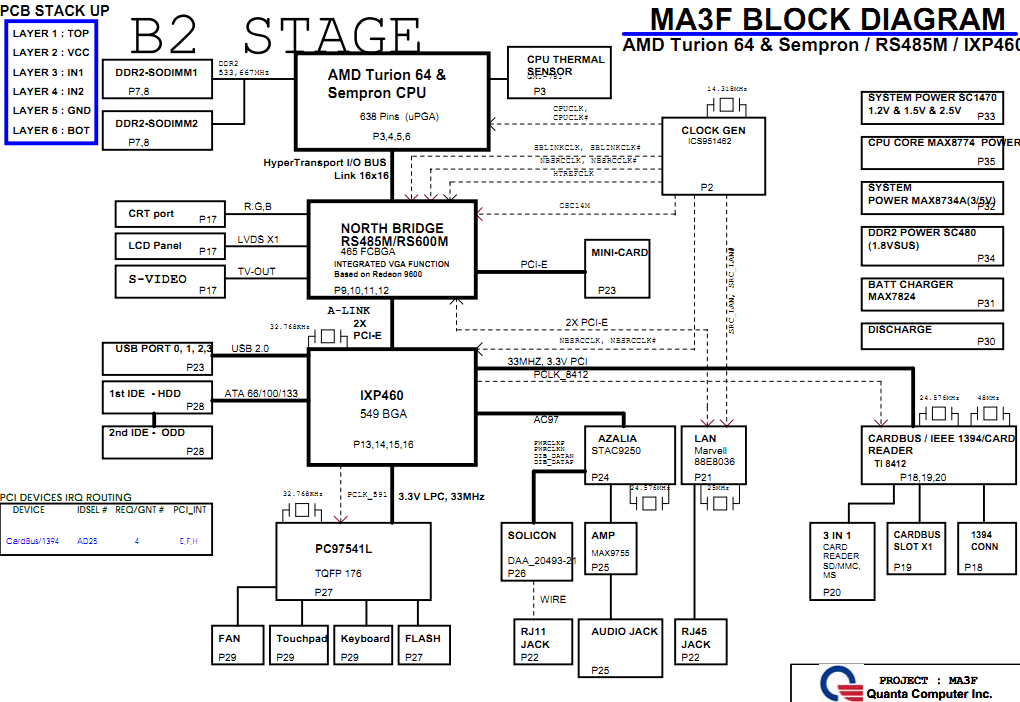

Gateway MT6451 MT6485 MX6453 Block Diagram:

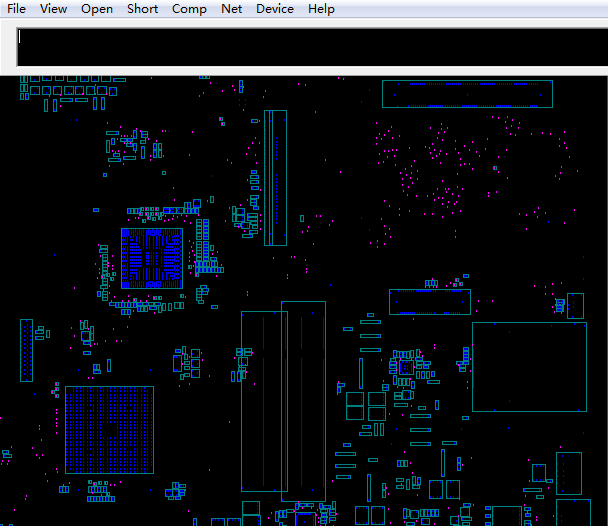

Gateway MT6451 MT6485 boardview:
