HP ProBook 440, 450 G2 Schematic, LA-B181P ZPL40/ZPL50/ZPL70

HP Schematics

The motherboard schematic for HP ProBook 440, 450 G2 laptop/notebook, INTEL Sharkbay & Crescent bay ULT –U processor with DDR3L, LA-B181P ZPL40/ZPL50/ZPL70 Mainboard.
CPU/RAM: Intel Broadwell U / Haswell / DDR3
Document Numbe: LA-B181P
OEM: Compal
Format: PDF
Searchable PDF file, No watermark of website
Total Sheet: 62
Sale Price: 9.5$

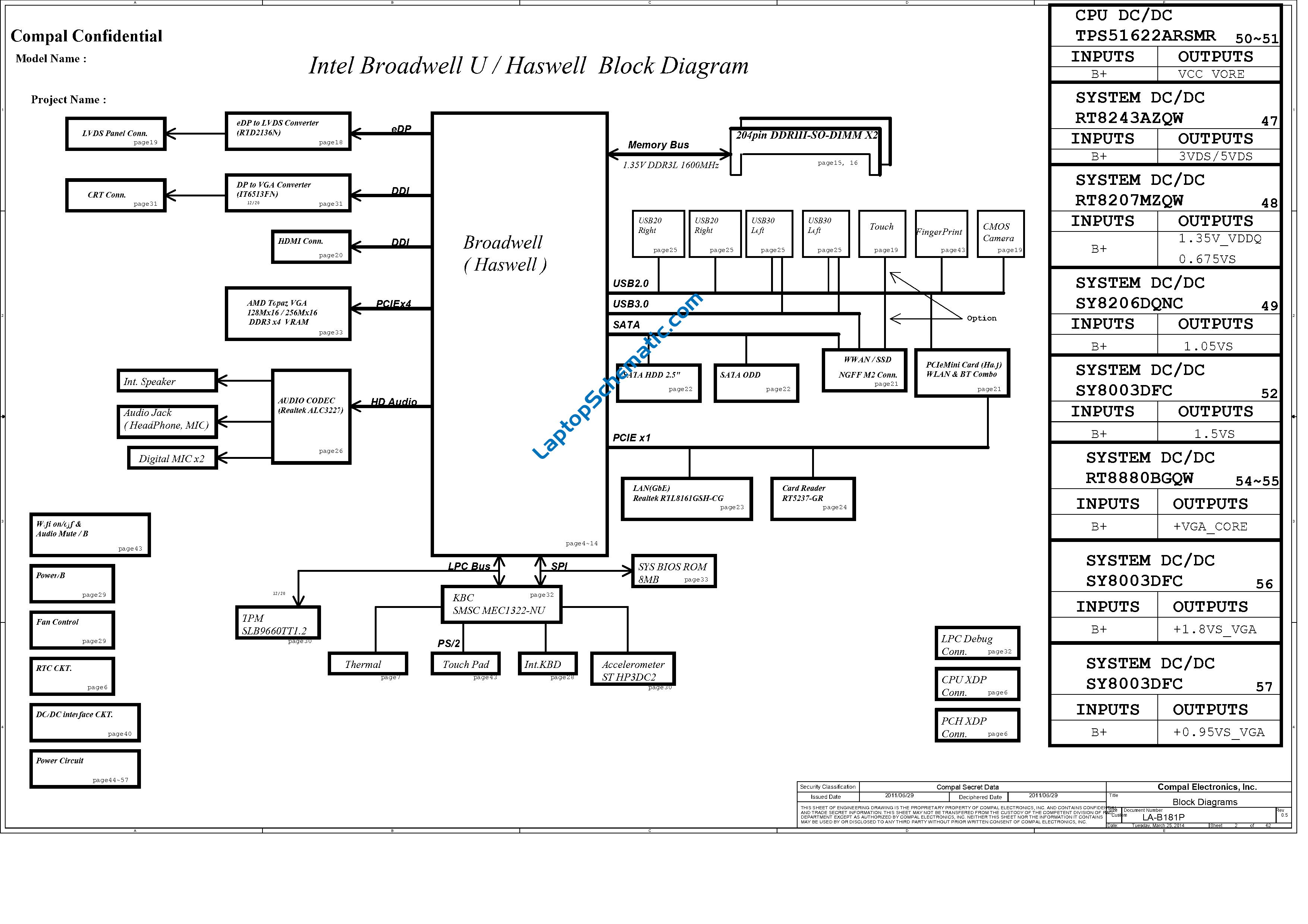

HP HP ProBook 440, 450 G2 Schematic LA-B181P:
HP HP ProBook 440, 450 G2 Schematic LA-B181P

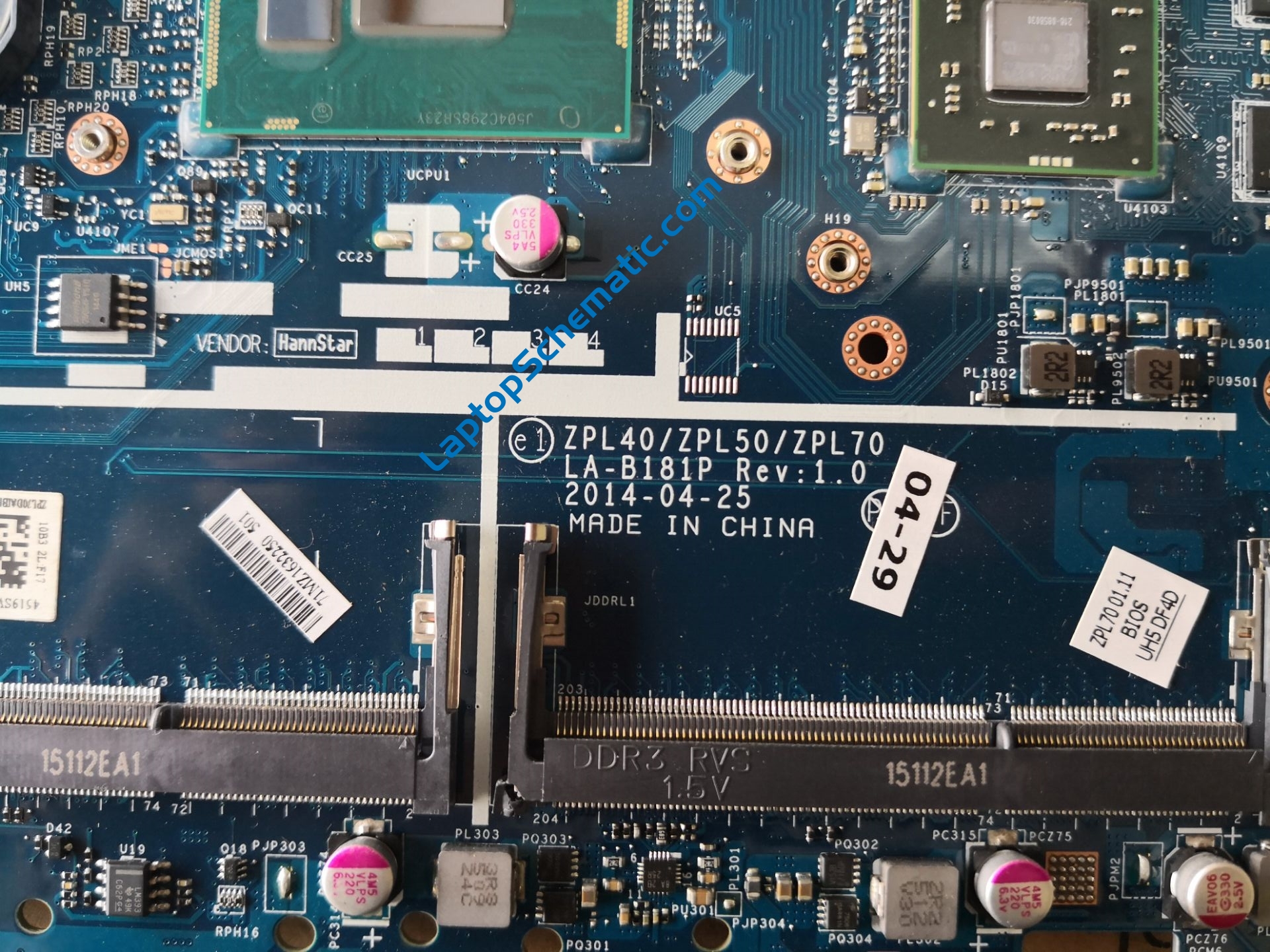

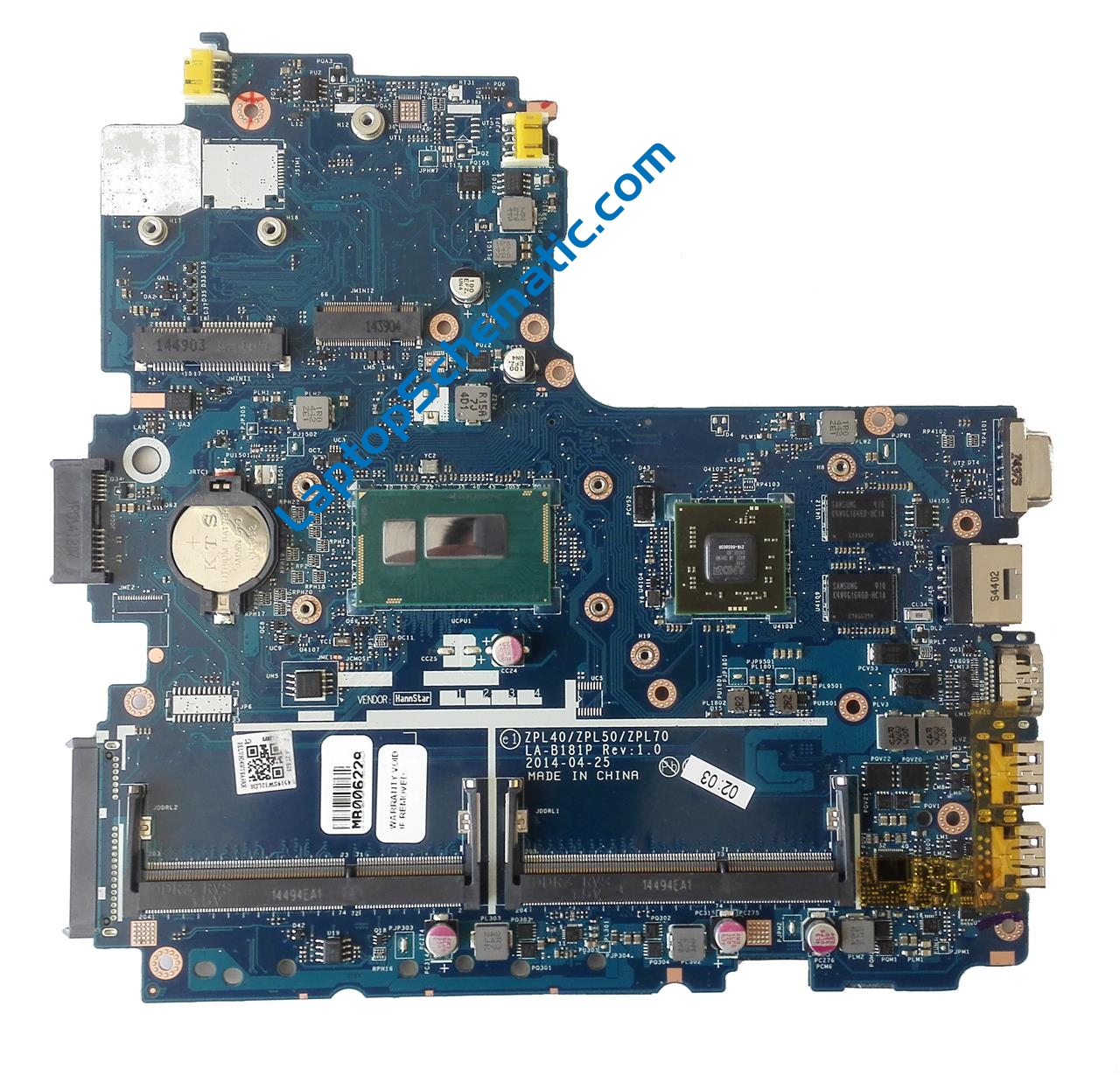

HP HP ProBook 440, 450 G2 LA-B181P Motherboard:
HP HP ProBook 440, 450 G2 LA-B181P Motherboard

HP HP ProBook 440, 450 G2 LA-B181P Motherboard
