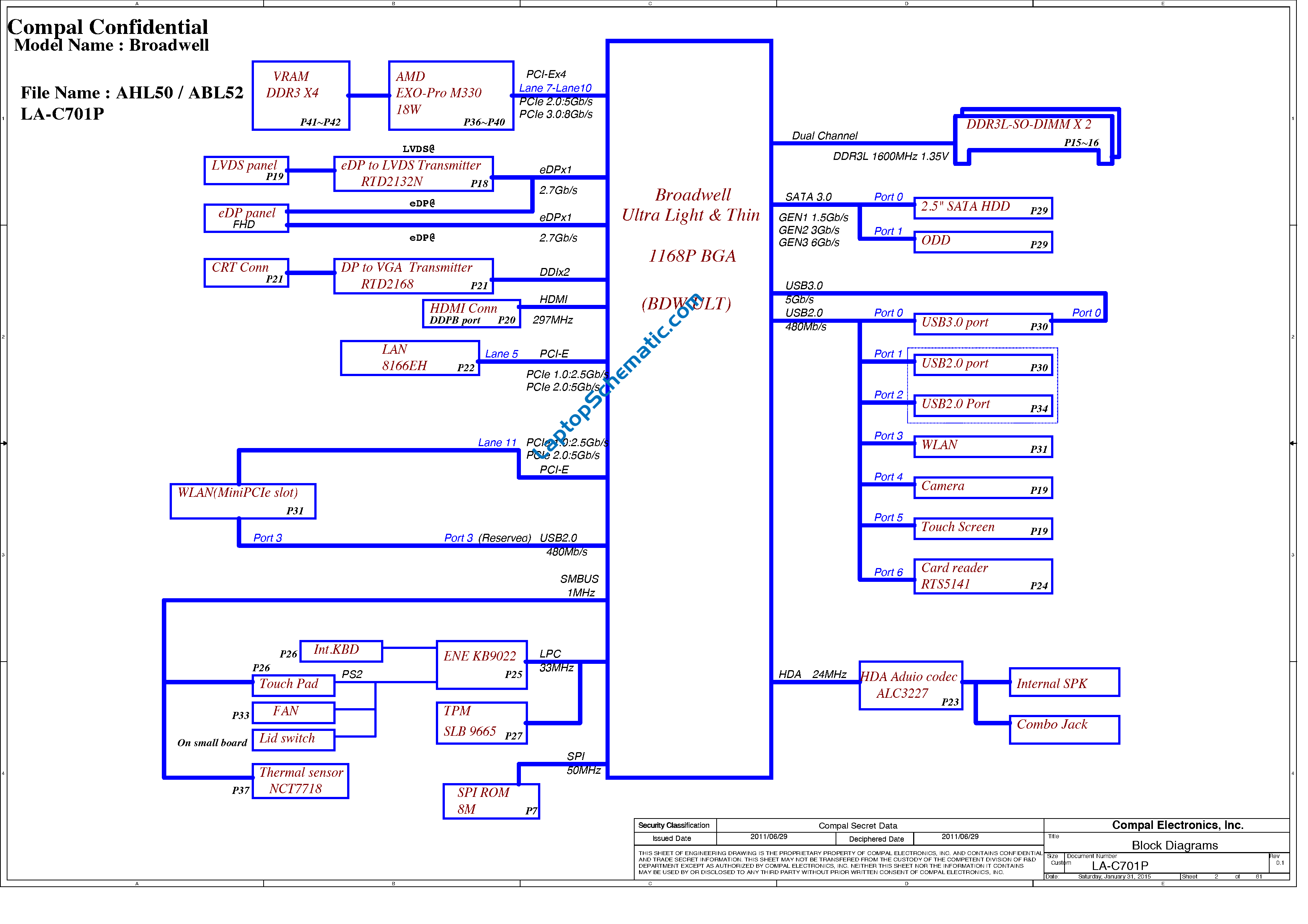

HP 250 G4 15-AC Schematic, AHL50/ABL52 LA-C701P

The motherboard schematic for HP 250 G4 15-AC laptop/notebook, Broadwell M/B Schematics Document, Intel ULV Processor with DDRIIIL, AHL50/ABL52 LA-C701P Mainboard.
CPU/RAM: Intel Broadwell U / Haswell / DDR3
Document Numbe: LA-C701P
File Name: AHL50 / ABL52 LA-C701P
OEM: Compal
Format: PDF
Searchable PDF file, No watermark of website
Total Sheet: 61
Sale Price: 9.5$

HP 250 G4 15-AC LA-C701P Schematic:
HP 250 G4 15-AC LA-C701P Schematic

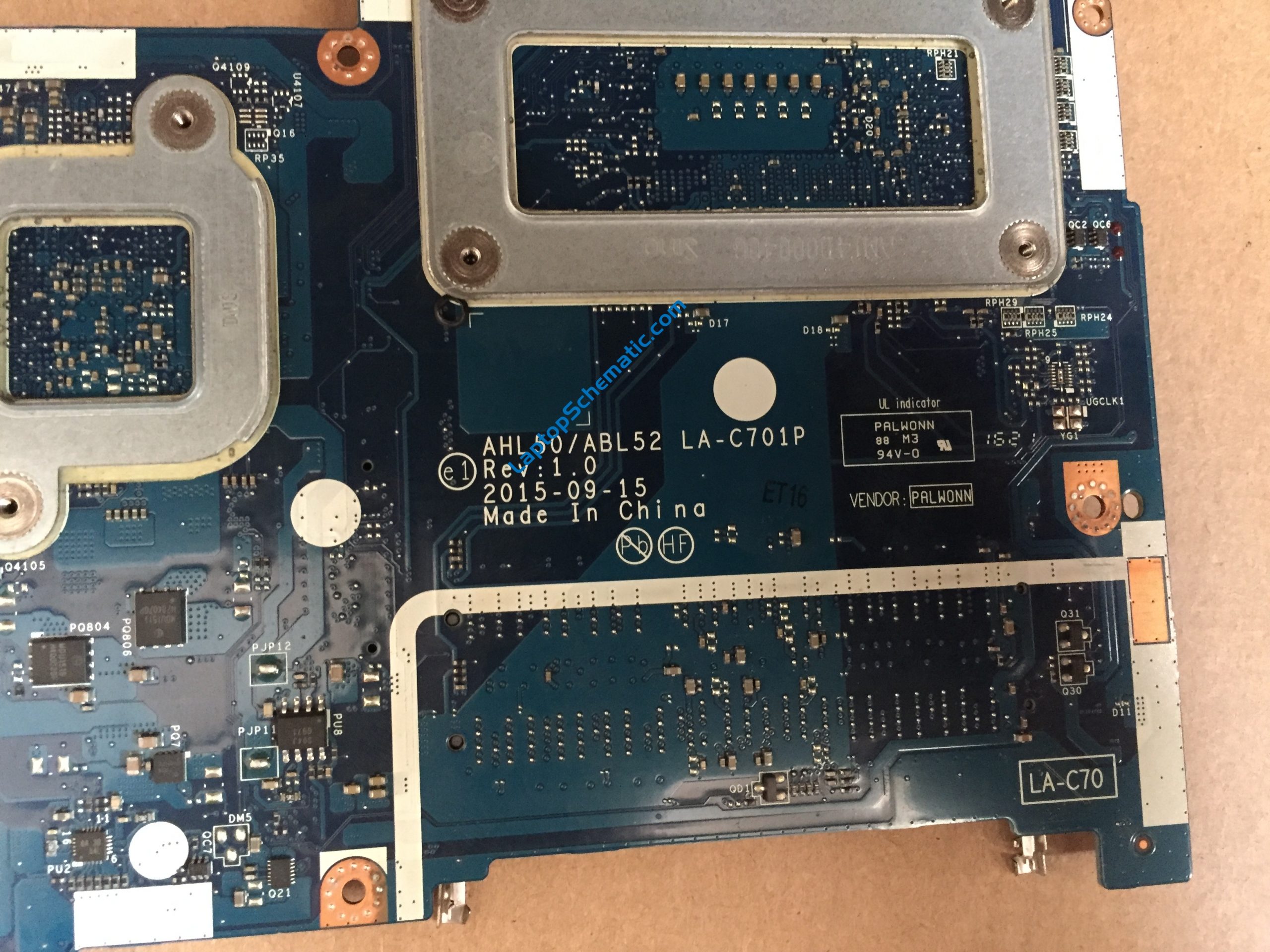

HP 250 G4 15-AC LA-C701P Motherboard:
HP 250 G4 15-AC Schematic AHL50 ABL52 LA-C701P Motherboard
