Lenovo IdeaPad V360 schematic & boardview, 09939-1 LA36

The motherbord schematic and boardview for Lenovo Ideapad V360 notebook/laptop, Wistron LA36 MB.
CPU: Intel Auburndale (Dual Core)
Discrete VGA NVIDIA N11M-LP1
Chipset: Intel PCH HM55
OEM: Wistron Corporation
Document Number: LA36 MB
Rev: -1
Format: PDF
Total Pages: 58
File size: 1.67MB (schematic) & 1.97MB (boardview)
Sale Price: 11.5$ (include boardview)

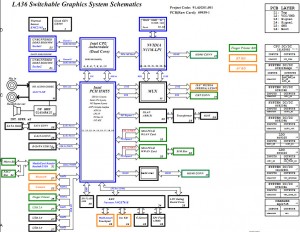

Lenovo IdeaPad V360 Block Diagram:

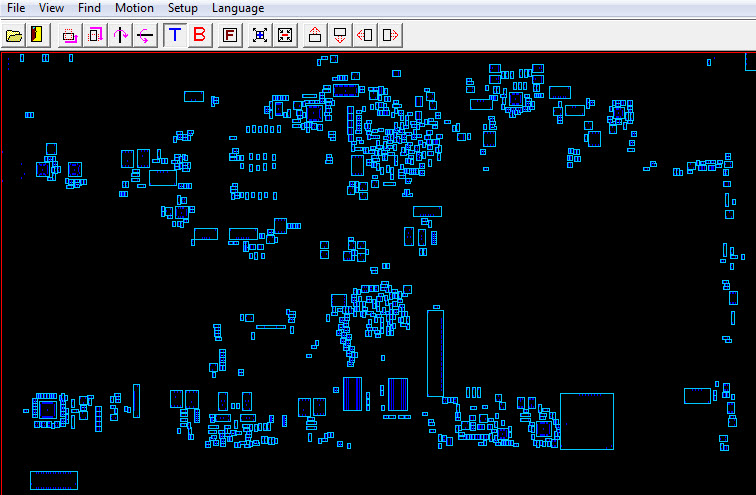

Lenovo IdeaPad V360 boardview(.bdv):
