The motherboard schematic & boardview for Lenovo ThinkPad Edge 0221-RY6 laptop/notebook, Quanta PS2A Mainboard.
CPU: AMD ASB2 Geneva
North Bridge: RS880M
South Bridge: SB820
OEM: Quanta Computer Inc.
PROJECT: PS2A
Rev: C
Format: PDF
Total Pages: 43
File size: 3.27MB
Sale Price: 10.5$

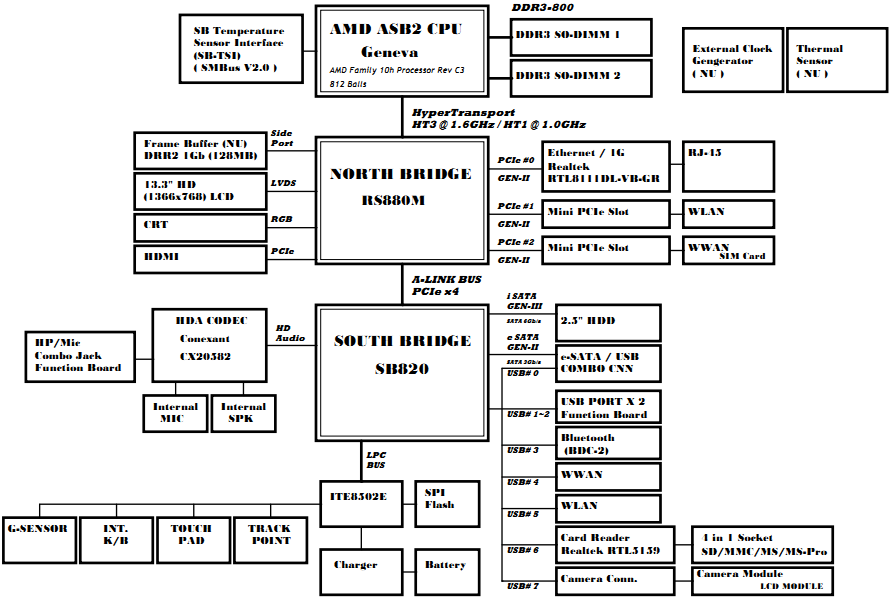

ThinkPad Edge 0221-RY6 Block Diagram:

ThinkPad Edge 0221-RY6 Block Diagram

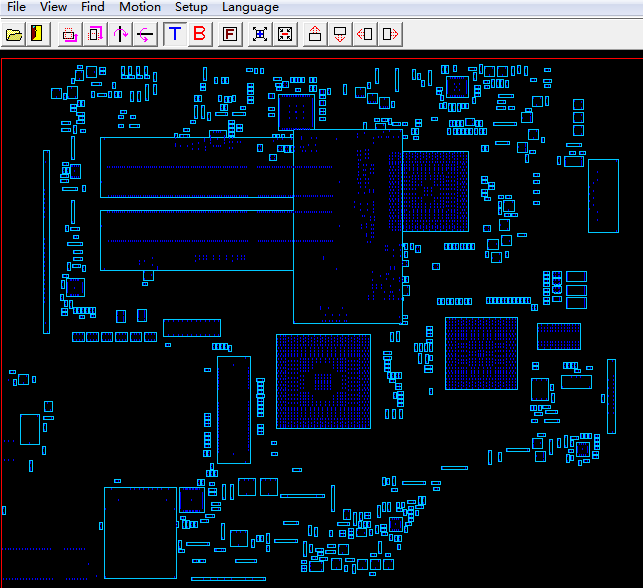

ThinkPad Edge 0221-RY6 boardview:

ThinkPad Edge 0221-RY6 boardview
