Apple M98 schematic diagram
The motherboard schematic diagram(pdf) for Apple M98, SCHEM,MBP 15″MLB.
Apple Computer Inc.
Title: SCHEM,MBP 15MLB
Drawing Number: 051-7546
Part Number: 820-2330
Format: PDF
Total Pages: 96
File size: 1.89MB
Language: English
Sale Price: 15.5$
Click to view bigger picture:

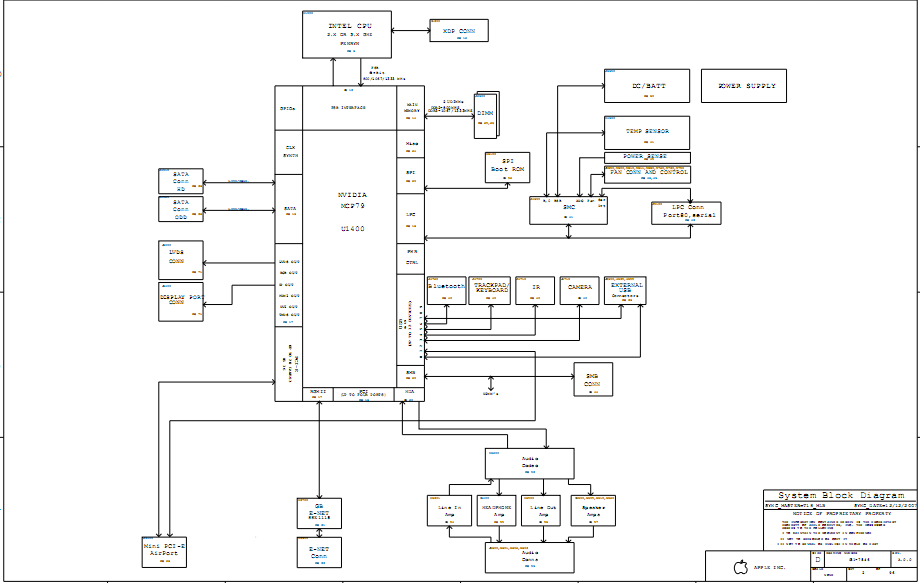

Apple M98 Block Diagram
