Dell Alienware 15 R3 Alienware 17 R4 ( GPU GTX1080) Schematic LA-D753P Motherboard

2021-03-27 DELL Schematics

The motherboard schematic for Dell Alienware 17 R4 (GPU NV GTX1080), Dell Alienware 15 R3 (GPU NV GTX1080) laptop/notebook, LA-D753P Motherboard.
CPU/PCH: Skylake/Kabylake-H
GPU: DIS (nVidia GTX1080_N17E-G3-A1) + GDDR5
EC/SIO: ENE KB9022
Document Name: LA-D753P
Model Name : BAP10(15″)/BAP20(17″)
Project Code : ANRBAP1000/ANRBAP2000
Rev: 0.2 (X01) & 1.0 (A00)
Format: PDF + XLS
Total Sheets: 82 + 82
OEM: Compal
Searchable PDF file, No watermark of website
Language: English
Sale Price: 12.5$

File list:

451A3031L07,08 & 451A4F31L01_DellBOM_Template.xls
451A3031L07,08 & 451A4F31L01_DellBOM_Template_20161209.xls
BAP10 BAP20_SKL_DellBOM_Template_20160829.xls

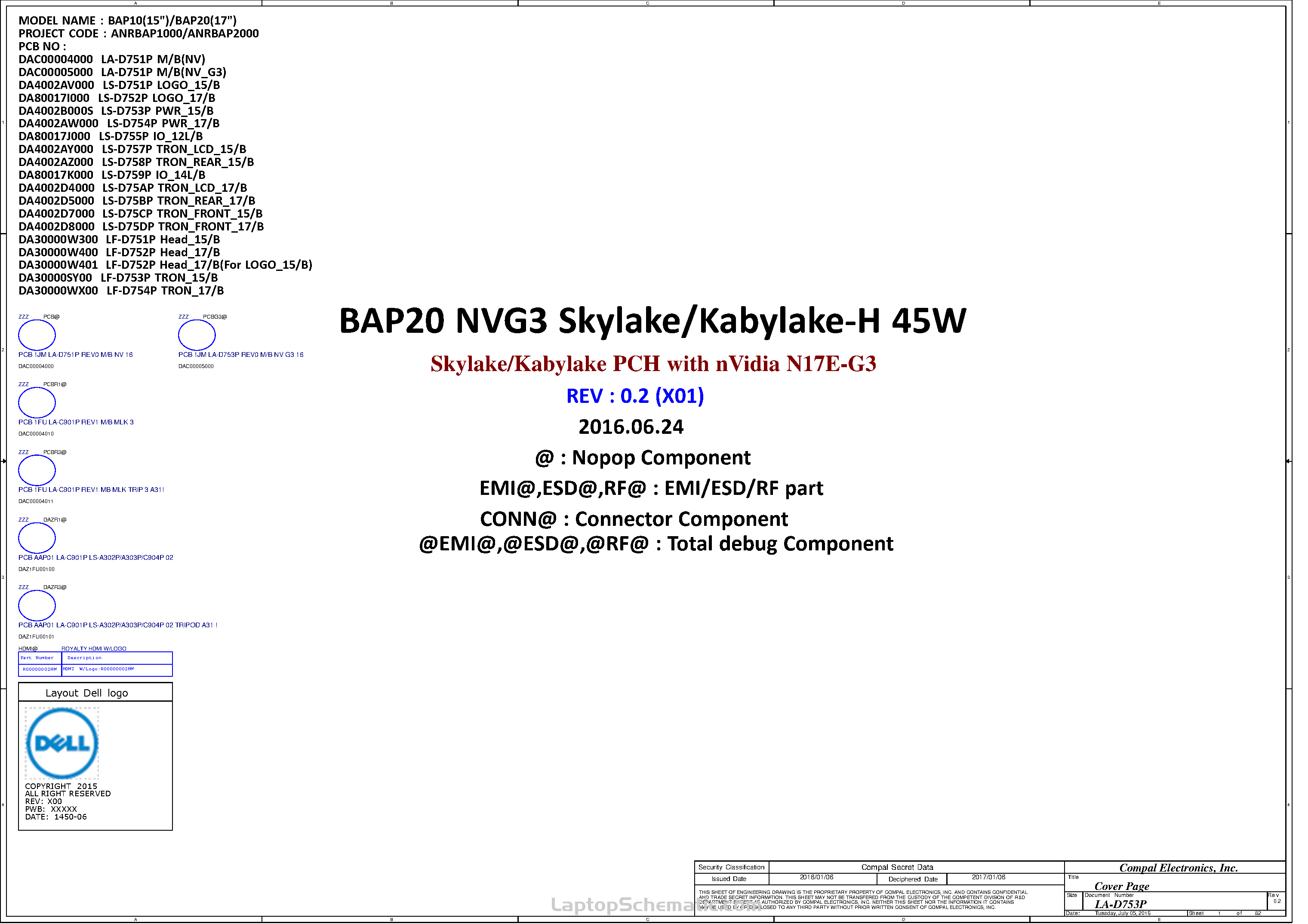

LA-D753P BAP20 REV 0.2 (X01).pdf
LA-D753P BAP20 REV 1.0(A00)_1020_CIT.PDF

Dell Alienware 17 R4 Alienware 15 R3 LA-D753P Schematic:
