Dell Latitude E6410 (UMA) schematic, NCL00 LA-5471P

The schematic diagram for Dell Latitude E6410 (Integated VGA) notebook/laptop, NCL00 Mainboard, Compal LA-5471P.
CPU: Arrandale 4MB (Socket G1)
Chipset: INTEL IBEXPEAK-M
OEM: Compal Electronics, Inc.
MODEL NAME : NCL00 NCL10(ATG)
PCB NO : LA-5471P ( DA80000G710)
Document Number: LA-5471P
Rev: 1.0
Format: PDF
Total Pages: 57
File size: 1.72MB
Sale Price: 11.5$

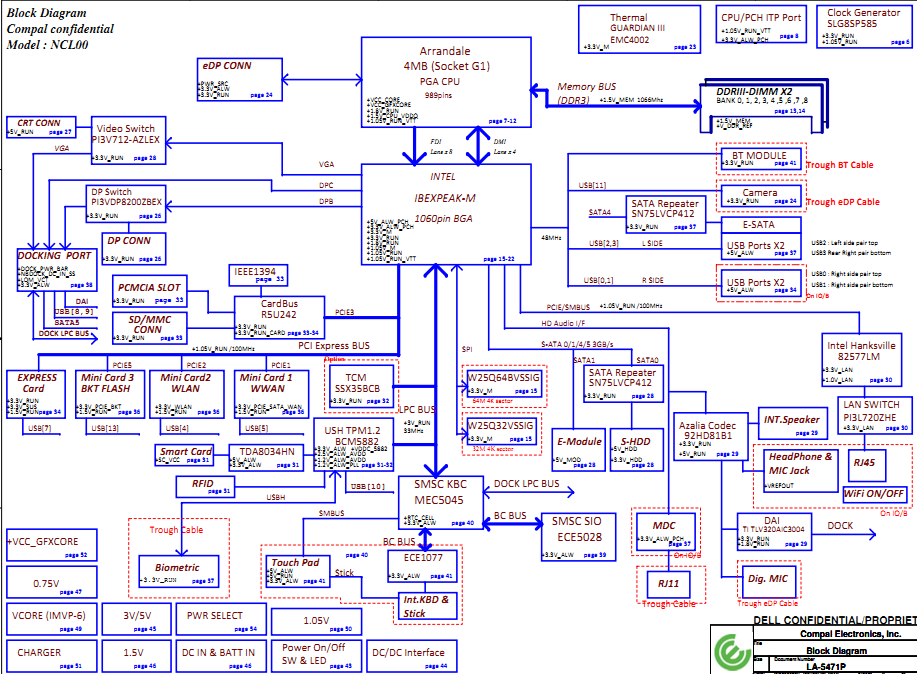

Dell Latitude E6410 Block Diagram:
Dell Latitude E6410 Block Diagram

Dell Latitude E6410 Block Diagram
