Dell Latitude E6500,Precision M4400 schematic(DIS LA-4051P)

The motherboard schematic diagram(pdf) for Dell Latitude E6500,Dell Precision M4400 (DIS,JAL21/22) laptop/notebook, Compal LA-4051P. M09 Avia / Maybach DIS, Mobile Penryn, Intel Intel Cantiga PM + ICH9M. “Maybach”=Latitude E6500, “Avia”=Precision M4400.
CPU: Pentium-M Penryn-4MB (Socket P)
ChipSet: Intel Cantiga PM + ICH9M
NV G98
OEM: Compal Electronics, Inc.
Model name: JAL21/22
PCB NO: LA-4051P (DAA00000R1L)
BOM P/N: 43153431L01 (Avia TPM)
43153431L02 (Avia Non TPM)
43153431L11(DSC TPM)
43153431L12 (DSC Non TPM)
Format: PDF
Total Pages: 63
Include: Power Sequence + SMBus Topology
Sale Price: 12.5$


DELL Latitude E6500 Precision M4400 Block Diagram(DIS):

DELL Latitude E6500 Block Diagram

DELL Latitude E6500 Block Diagram

Dell Latitude E6500,Dell Precision M4400 schematic:

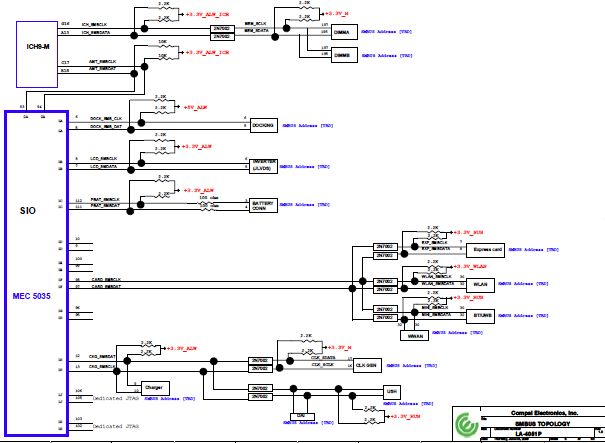

DELL Latitude E6500 Schematic Diagram

DELL Latitude E6500 Schematic Diagram
