Fujitsu Lifebook LH530 schematic,FH1A

The schematic diagram and boardview(.brd) for Fujitsu Lifebook LH530 laptop/notebook, Quanta FH1 MAIN BOARD.
CPU: Arrandale 35W
Discrete AMD PARK-LP
Chipset: PCH 82801IBM (HM55)
OEM: Quanta Computer Inc.
Project: FH1A
Rev: 1A
Format: PDF
Total Pages: 45
File size: 1.36MB
Sale Price: 12.5$ (include boardview)

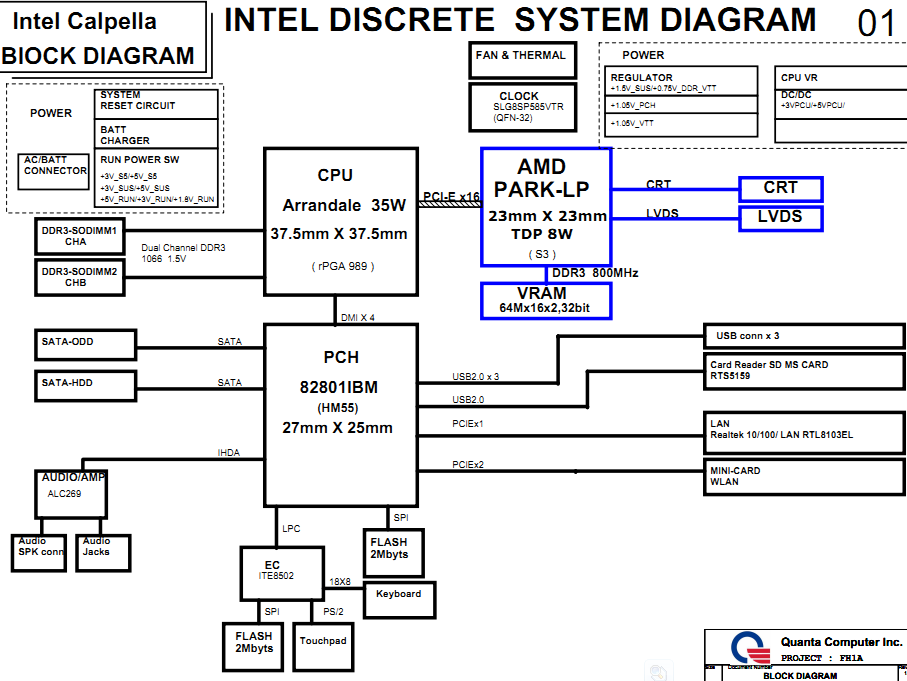

Fujitsu Lifebook LH530 Block Diagram:

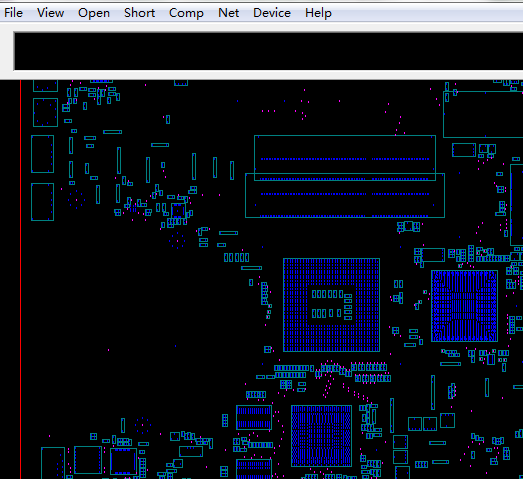

Fujitsu Lifebook LH530 boardview:
