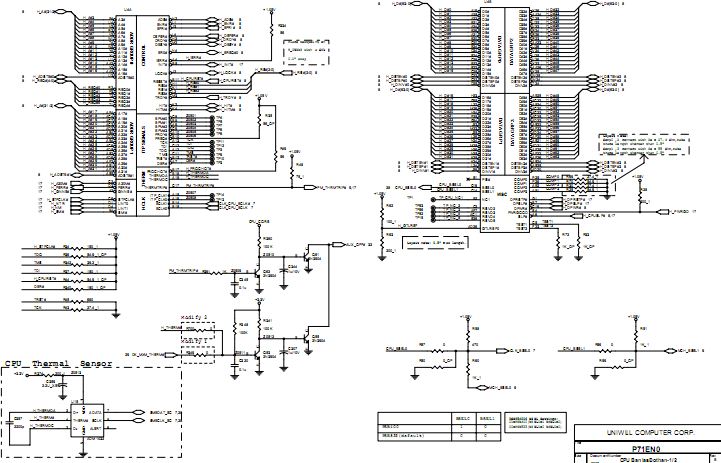

Hasee W360E W726E laptop schematic diagram(UNIWILL P71EN0)

The motherboard schematic diagram for Hasee W360E W726E laptop/notebook, also fit Fujitsu Siemens Amilo M3438 M3438G M1437G, UNIWILL P71EN0, Mobile Dothan with INTEL 915PM / ICH6-M Chipset.
CPU: Intel Dothan
North Bridge: Intel 915PM
South Bridge: Intel ICH6-M
OEM: UNIWILL COMPUTER CORP.
Title: P71EN0
P/N: 37-UJ0000-00B ; 82-UJ0001-00B
Format: PDF
Total Pages: 35
Total Files size: 868KB
Language: English
Sale Price: 12.5$

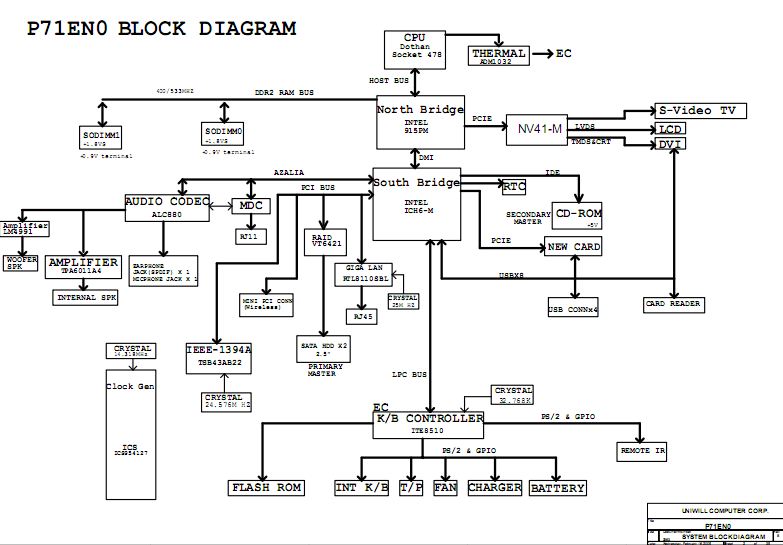

Hasee W360E (P71EN0) Block Diagram:
