HP Compaq 6530s/6531s/6730S/6820s/6830s laptop schematic

The motherboard schematic for HP Compaq 6530s/6531s/6730s/6820s/6830s laptop/notebook, 6050a2161401-mb-ax1.
CPU: Penryn
North Bridge: Cantiga PM45
South Bridge: ICH9-M
OEM: INVENTEC
Title: S-SERIES – Discrete
Document Number: 1310A21614
REV: A01
Format: PDF
Total Pages: 54
File size: 876.1 KB
Language: English
Sale Price: 12.5$

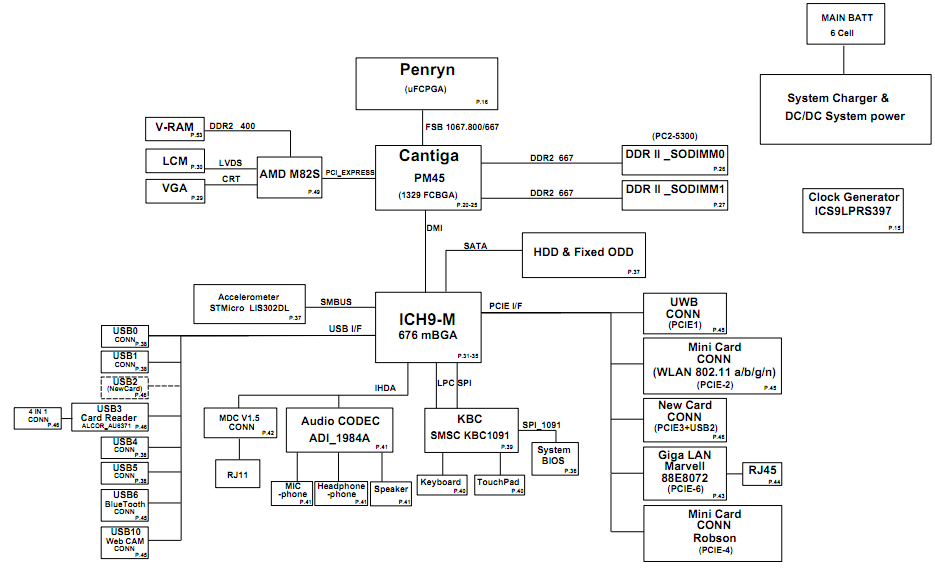

HP Compaq 6530s/6531s/6730S/6820s/6830s Block Diagram:
