HP Compaq NC4200 TC4200 schematic diagram

The motherboard schematic diagram for HP Compaq NC4200 and HP Compaq TC4200 laptop/notebook. Schematics Document, Mobile Dothan uFCBGA/uFCPGA with Intel Alviso_GM+ICH6-M core logic.
CUP: Mobile Dothan/Yonah
North Bridge: Intel Alviso GMCH
South Bridge: Intel ICH6-M
OEM: Compal Electronics, Inc.
File Name: LA-2211
Title: Heavenly
REV: 06
Format: PDF
Total Pages: 48
File size: 1.07MB
Language: English
Sale Price: 5.5$

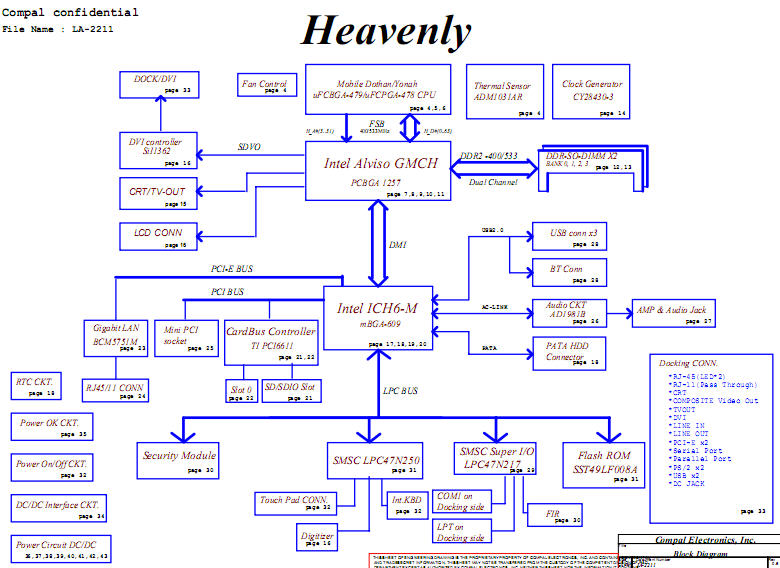

HP Compaq NC4200 TC4200 laptop Block Diagram:
