HP Pavilion dv5000/dv5100/dv8000, Compaq V5000/V5000Z/NC5000 schematic, LA-3181P

The motherboard schematic for HP Pavilion dv5000, HP Pavilion dv5100, HP Pavilion dv8000, Compaq Presario V5000 Series, Compaq Presario V5000Z, Compaq NC5000, HAL10 Mainboard Compal LA-3181P. AMD K8 with ATI RS480M+ATI SB400.
CPU: Mobile AMD Athlon 64
North Bridge: ATI-RS480M
South Bridge: ATI-SB400
OEM: Compal Electronics, Inc.
File Name : LA-3181P
Title: SCHEMATIC, M/B LA-3181P
Document Number: 401417
Rev: B
Format: PDF
Total Pages: 54
File size: 1.04MB
Sale Price: 9.5$

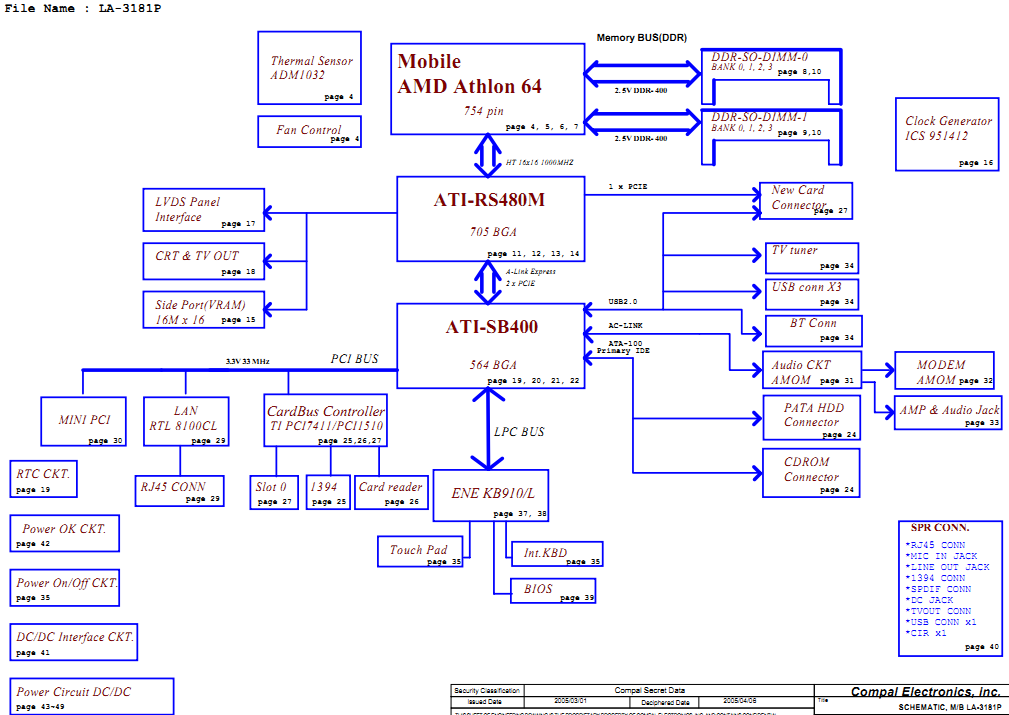

LA-3181P Block Diagram:

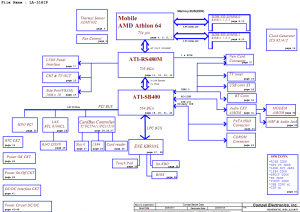

LA-3181P Block Diagram

LA-3181P Block Diagram
